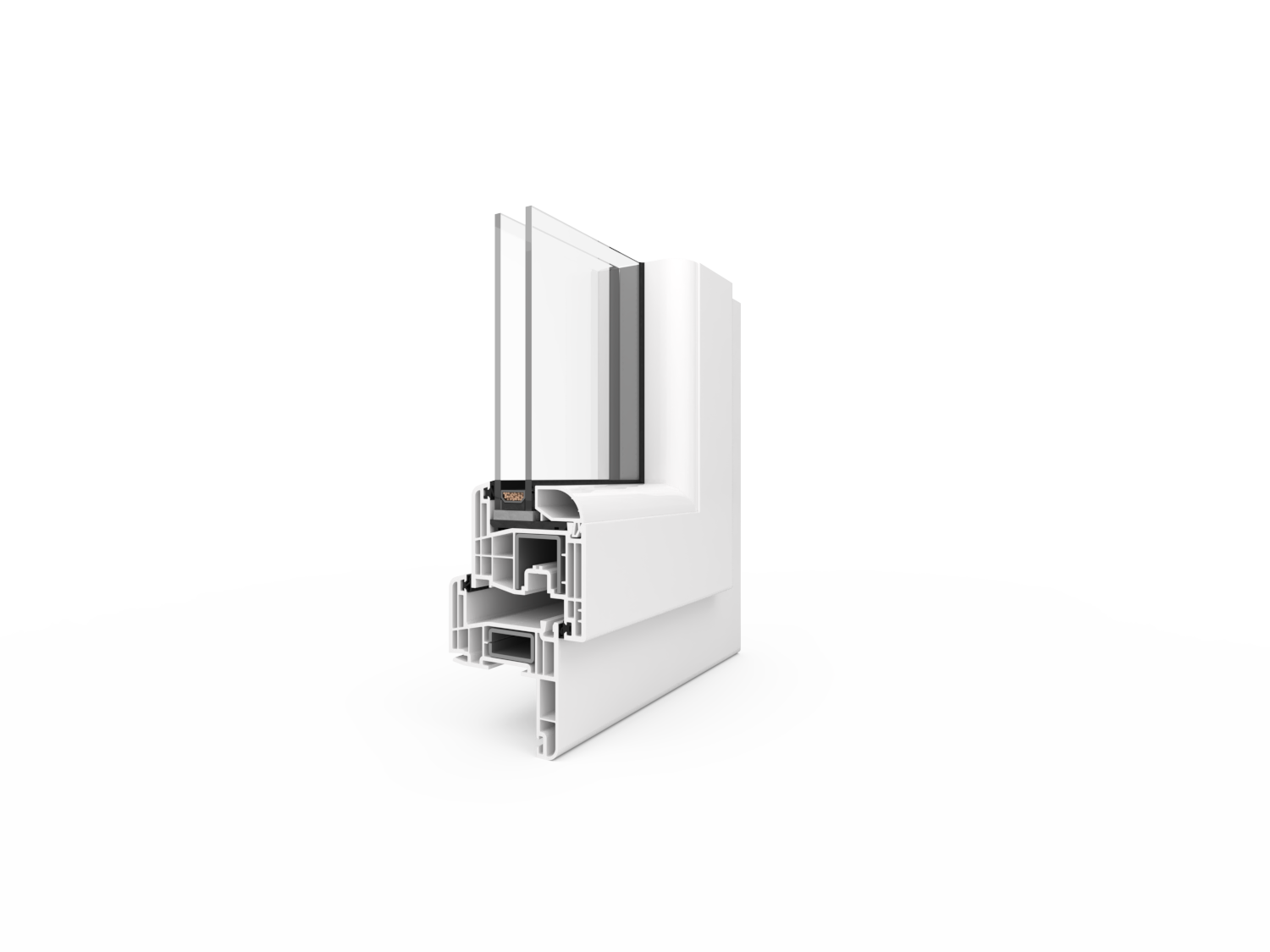

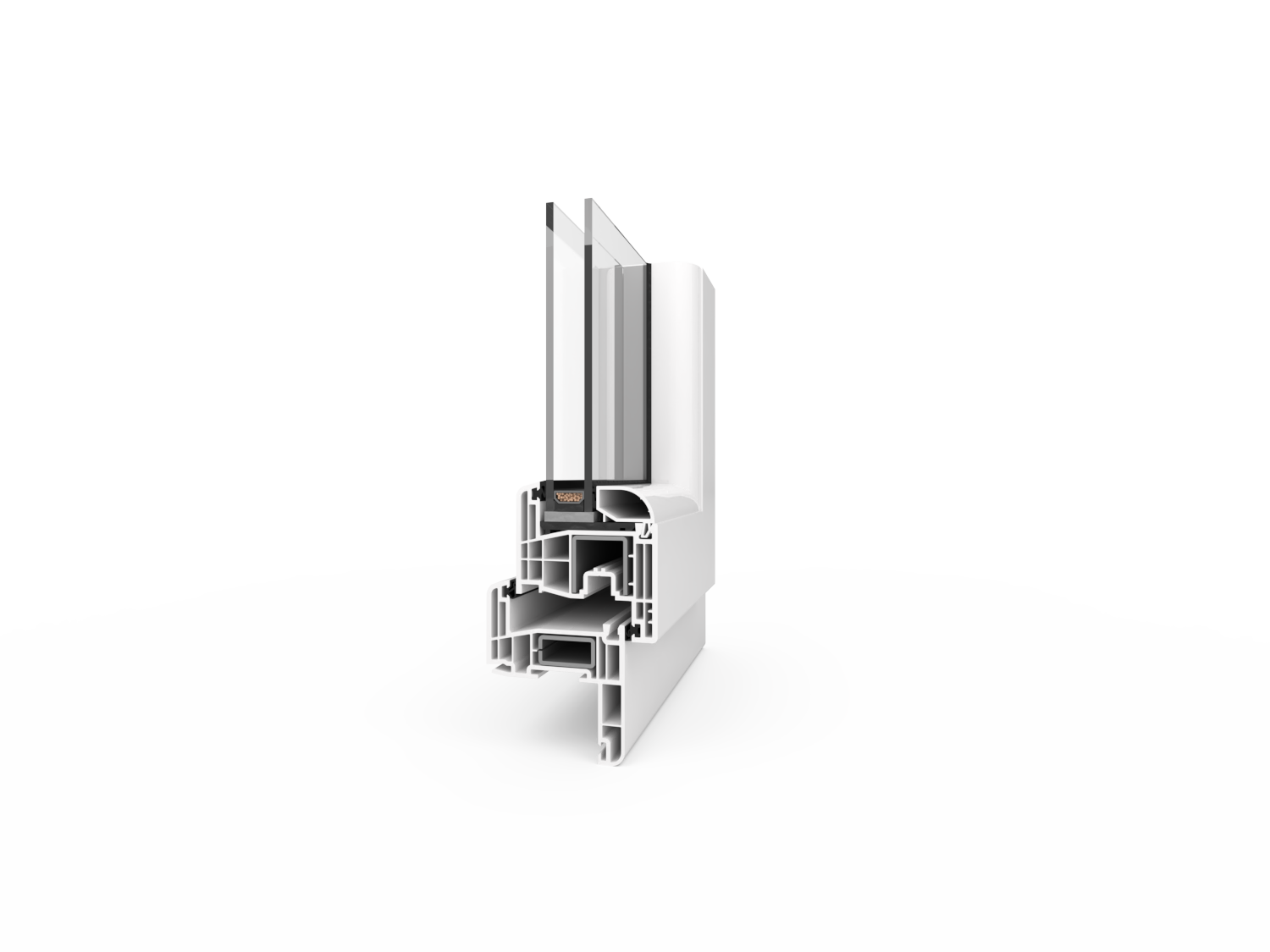

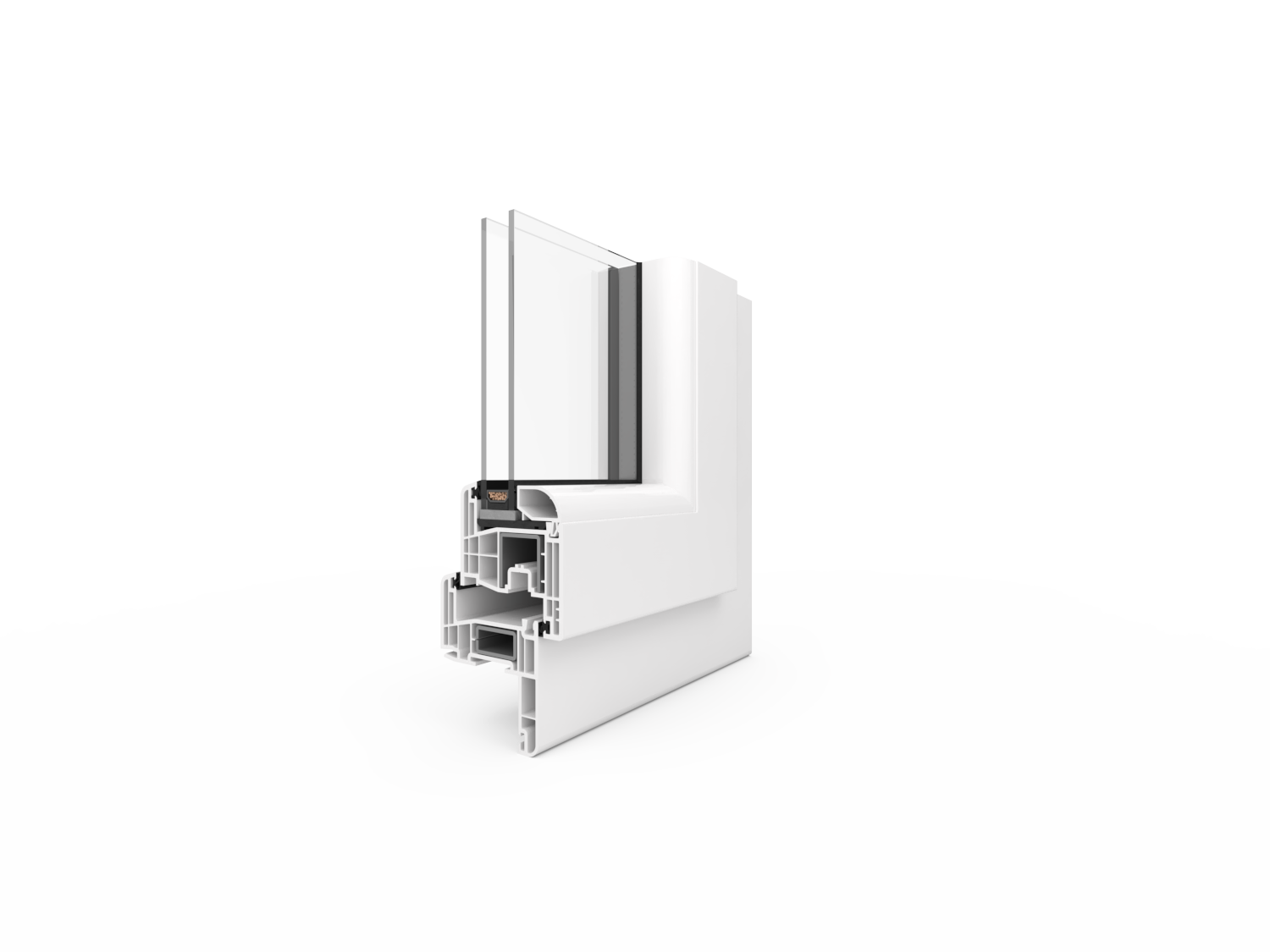

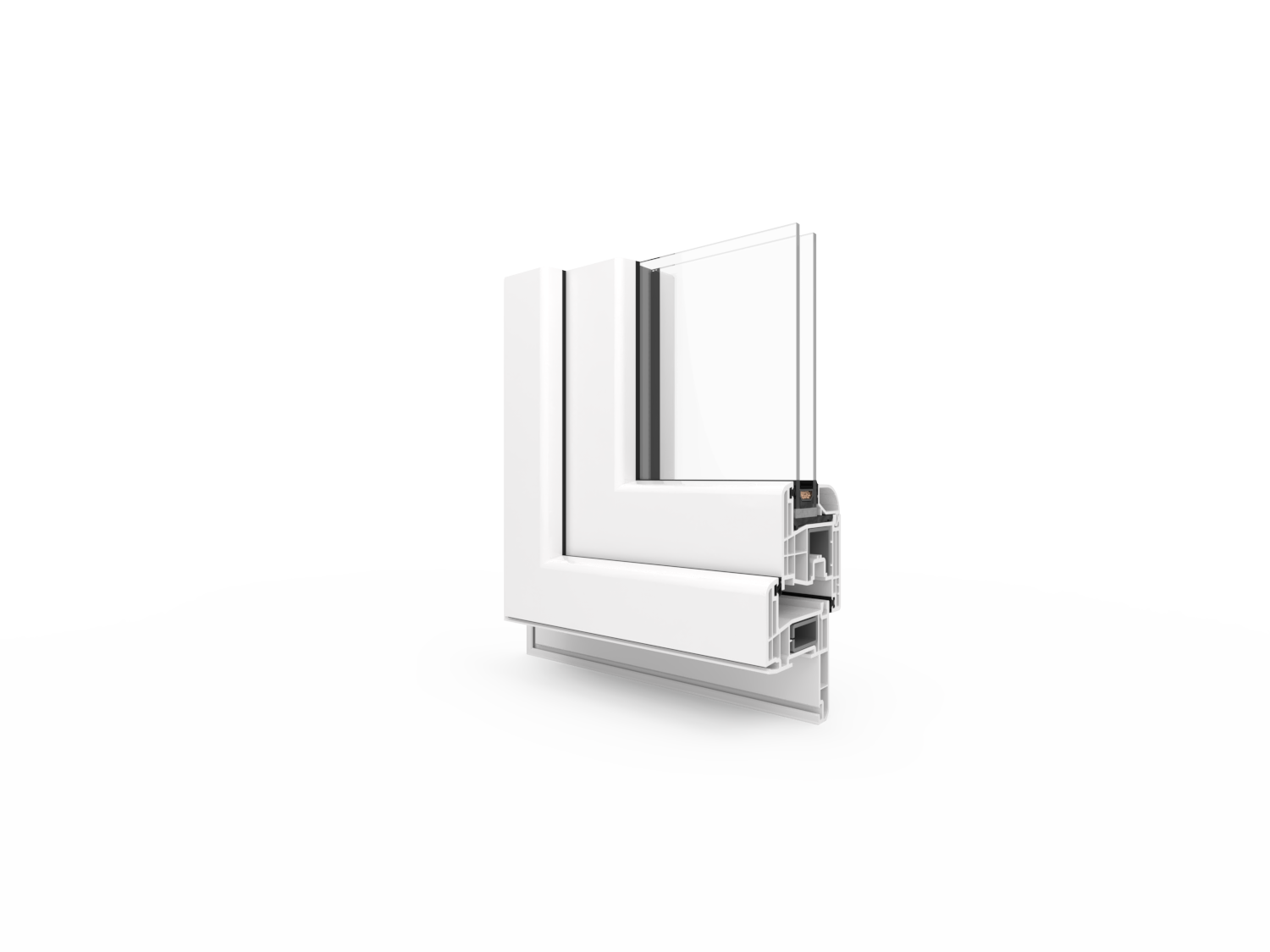

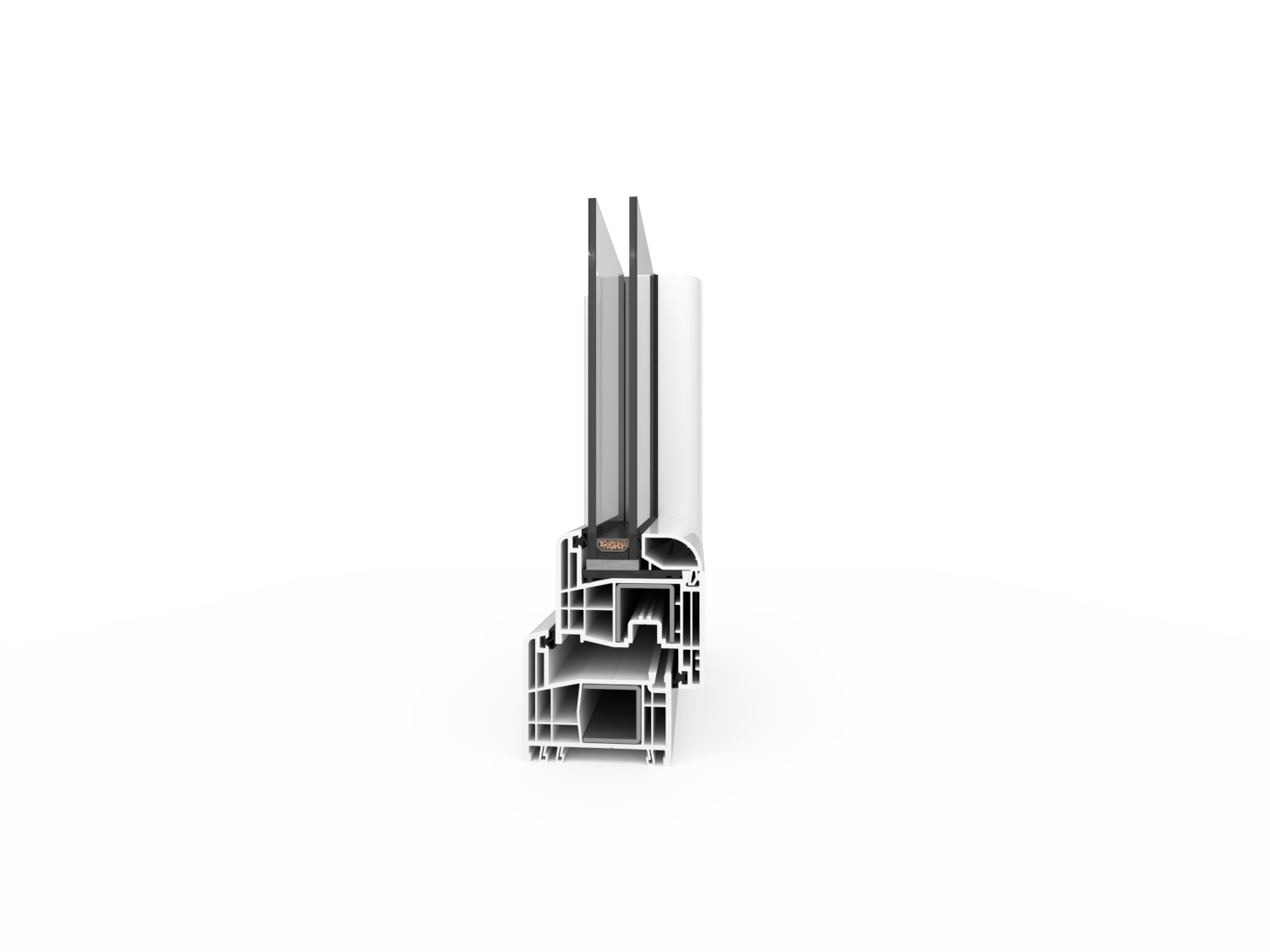

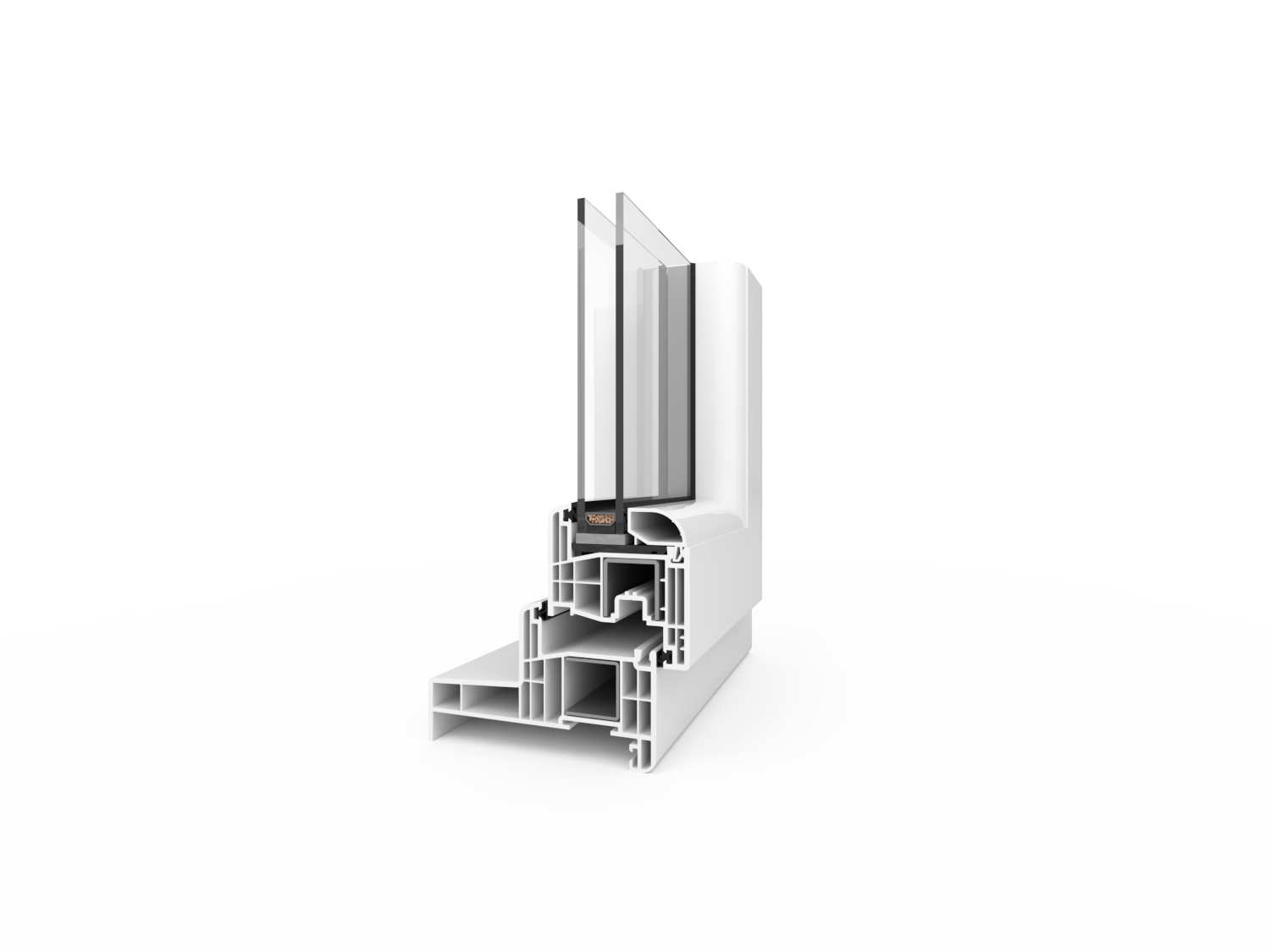

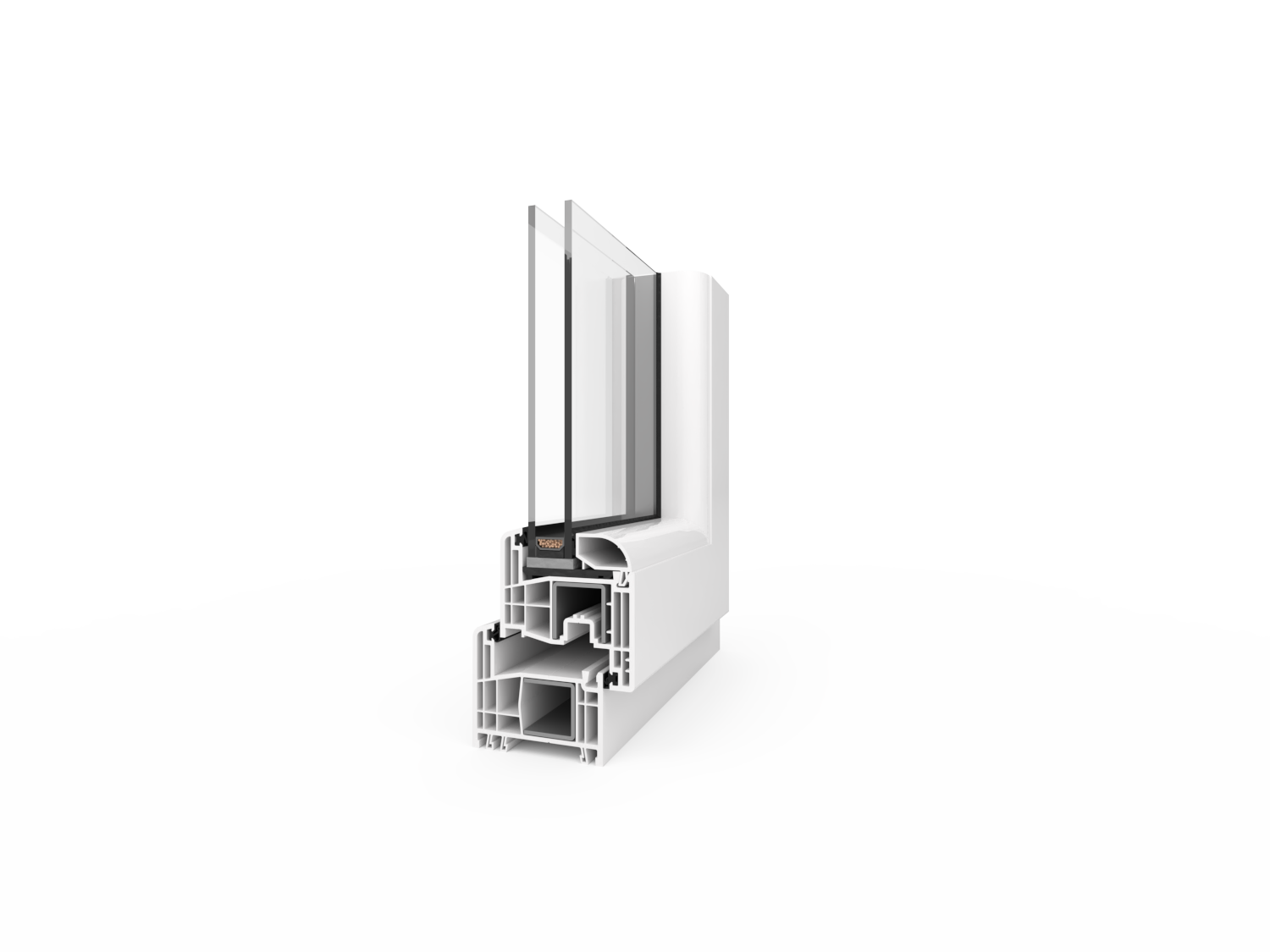

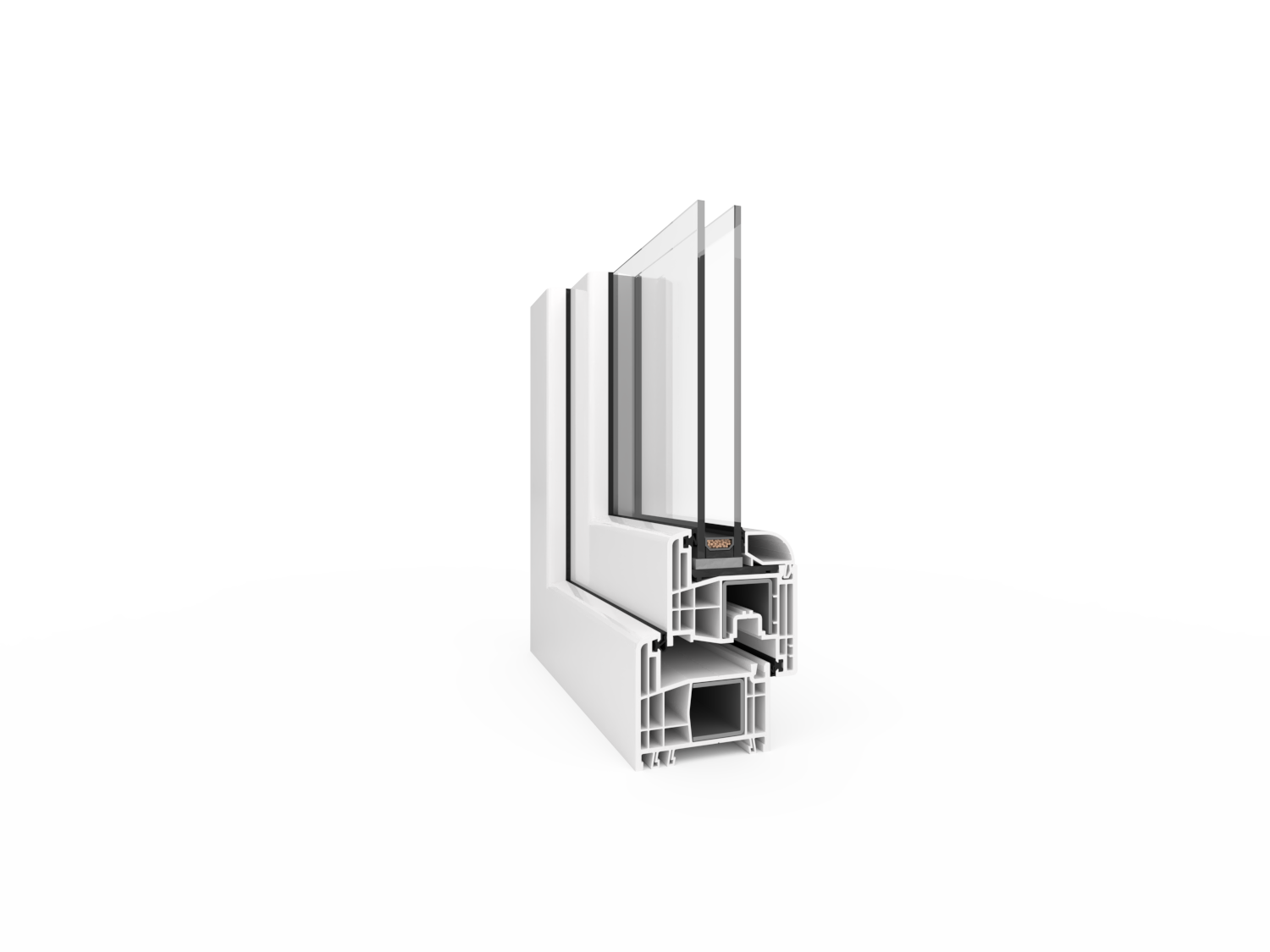

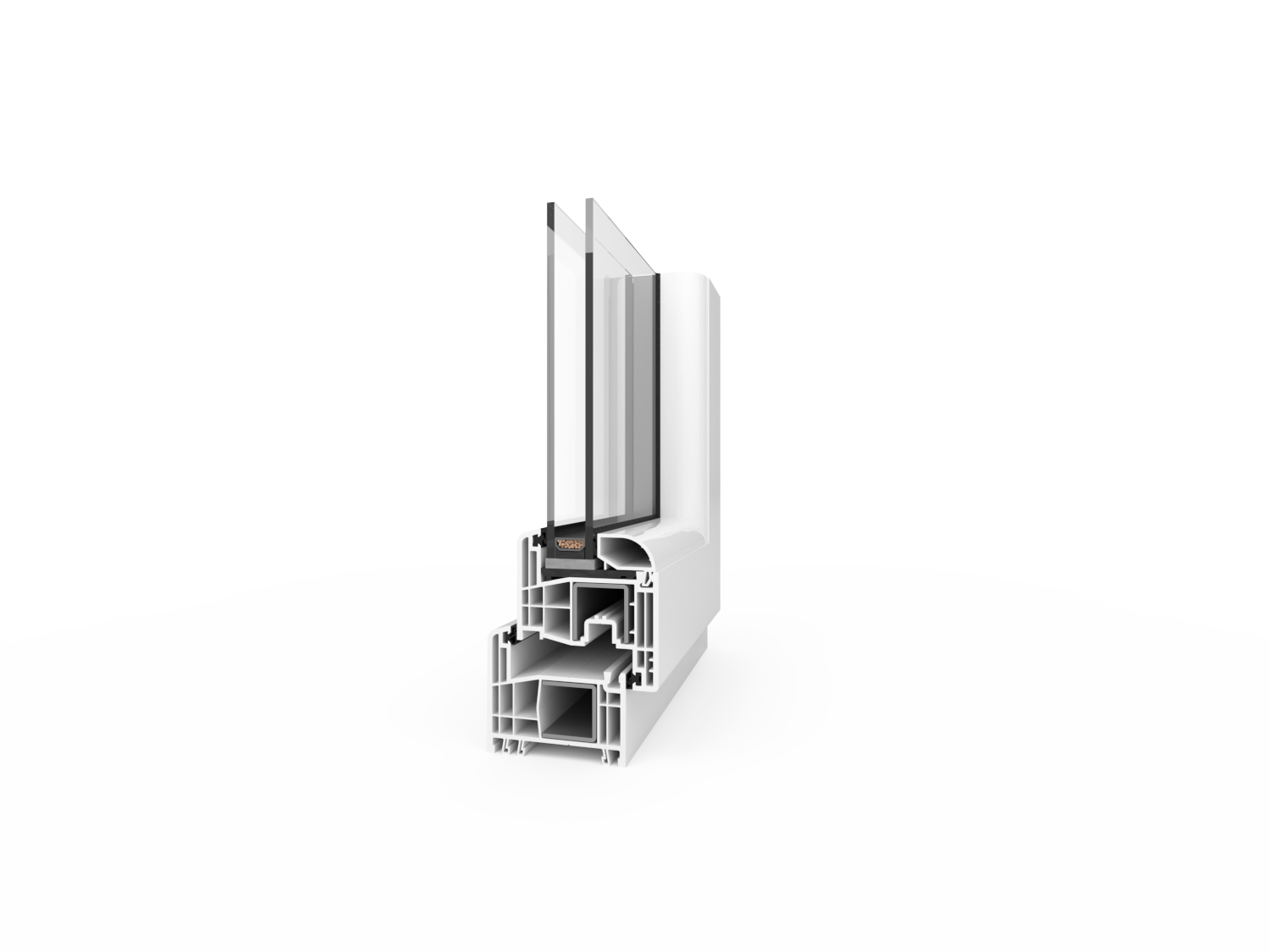

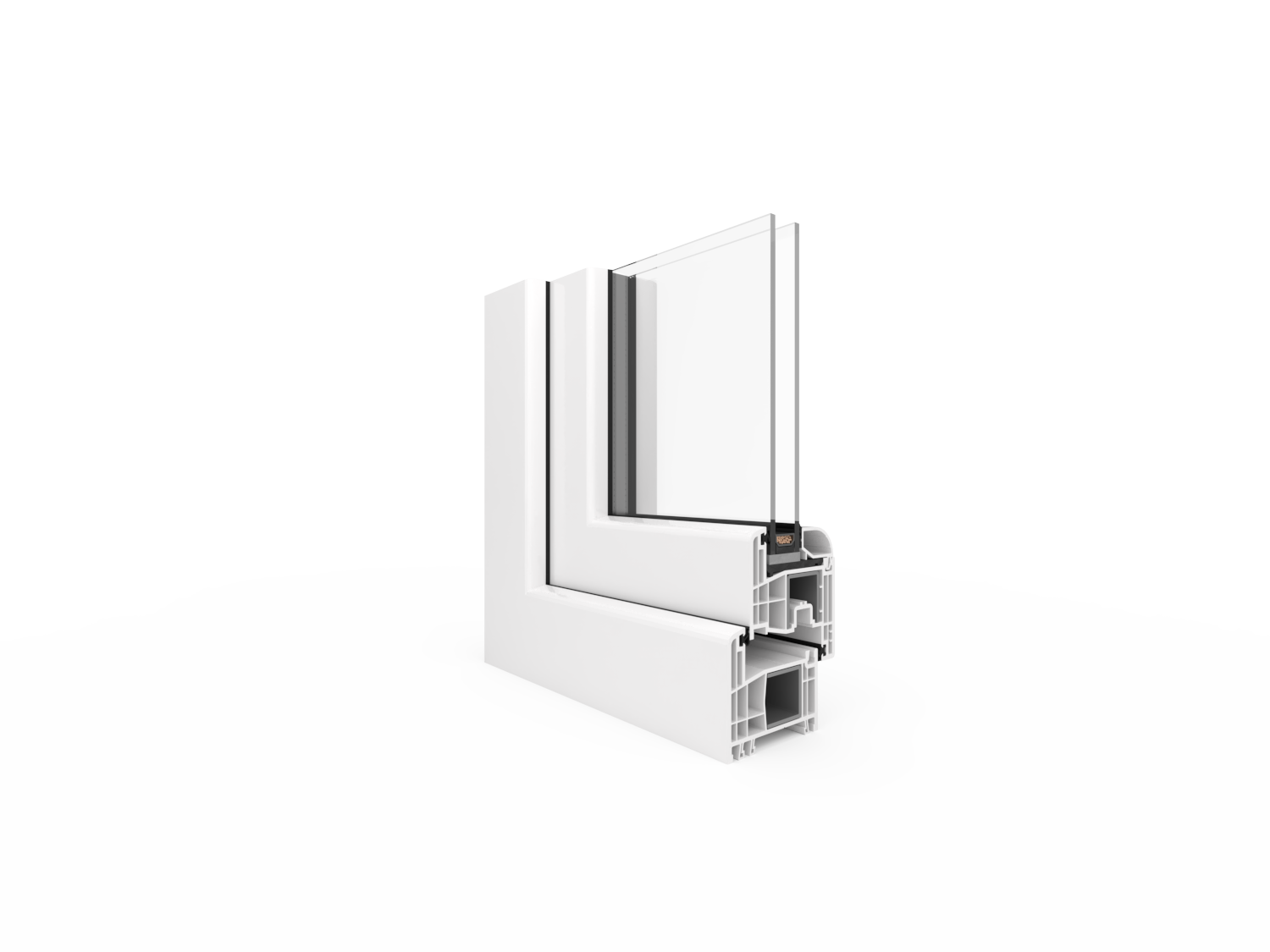

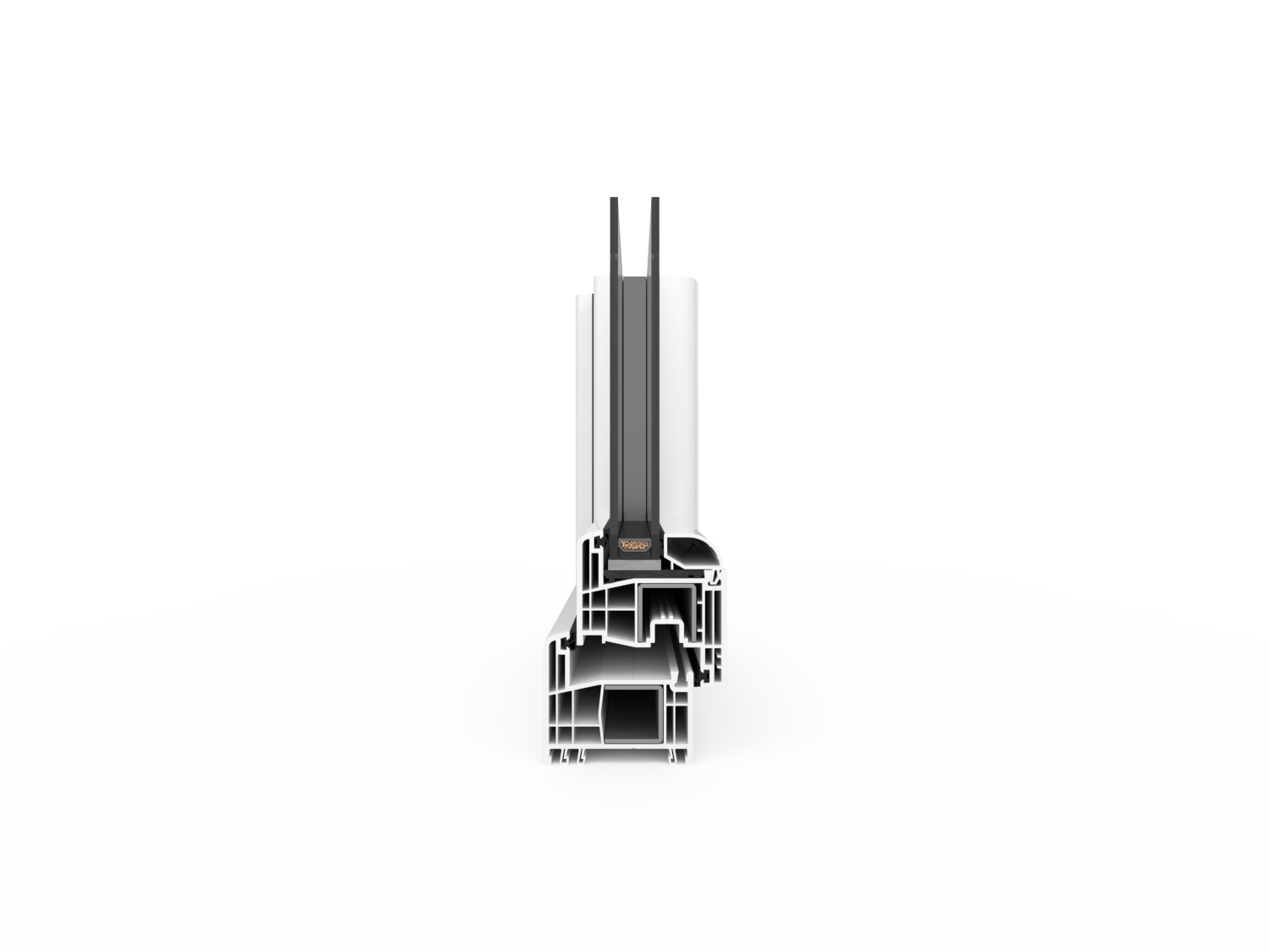

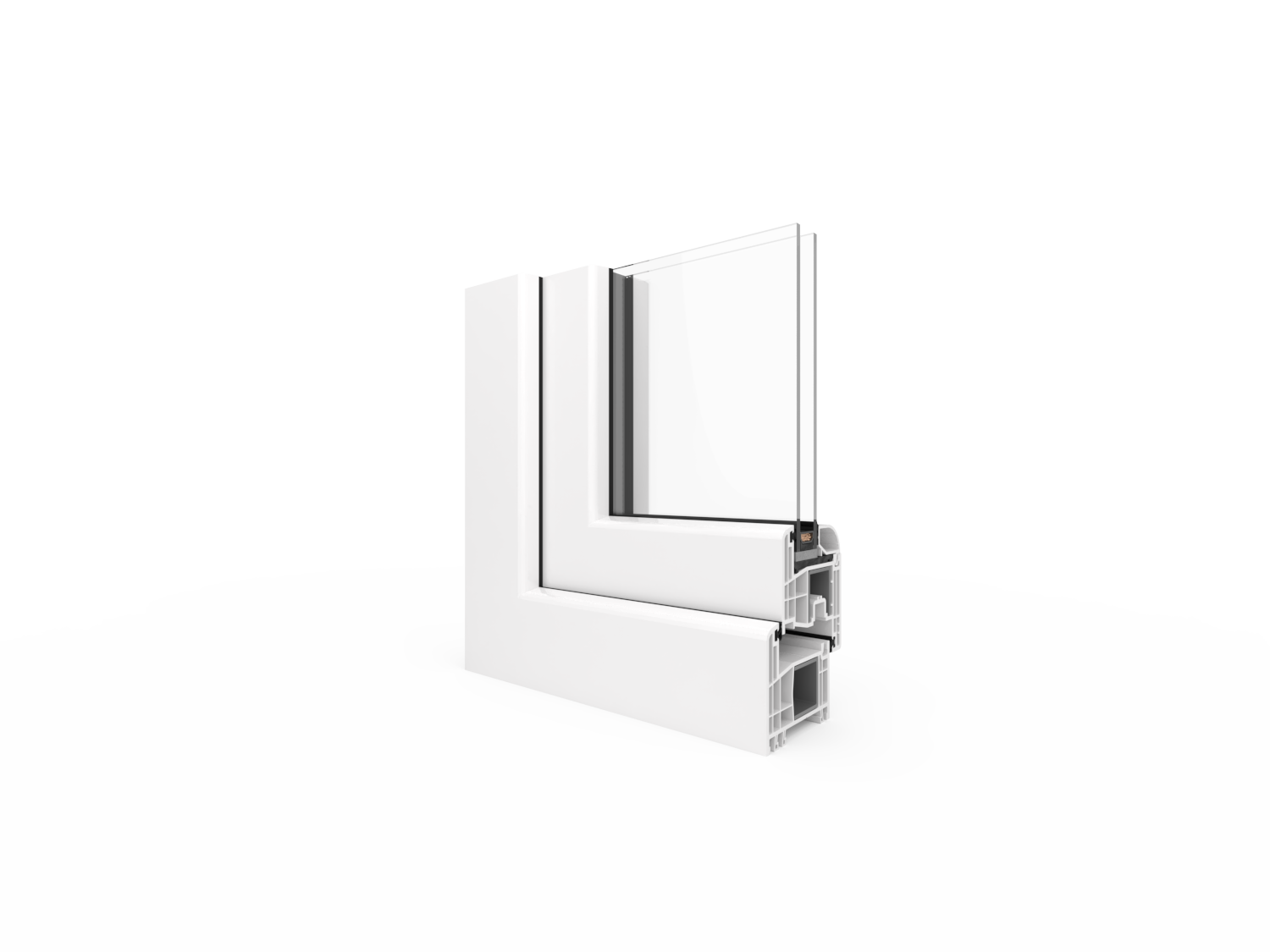

S8000
The S8000 profile system meets the needs of the market. The system has been designed with a retaining seal with a profile depth of 74 mm. A characteristic feature of the S8000 are the optimized profile geometries, which protect natural resources and thus the environment – so important nowadays.
Specification
- profile with a construction depth of 74 mm
- five anti-burglar latchesper sash as standard
- maximum window height: 2375 mm
- maximal glazing area (one sash): up to 2,45 m²
- glazing with units up to 48 mm
1.3
Uw for Ug = 1.1
(Aluminum spacer)*
2
Gaskets
5/6
Chambers

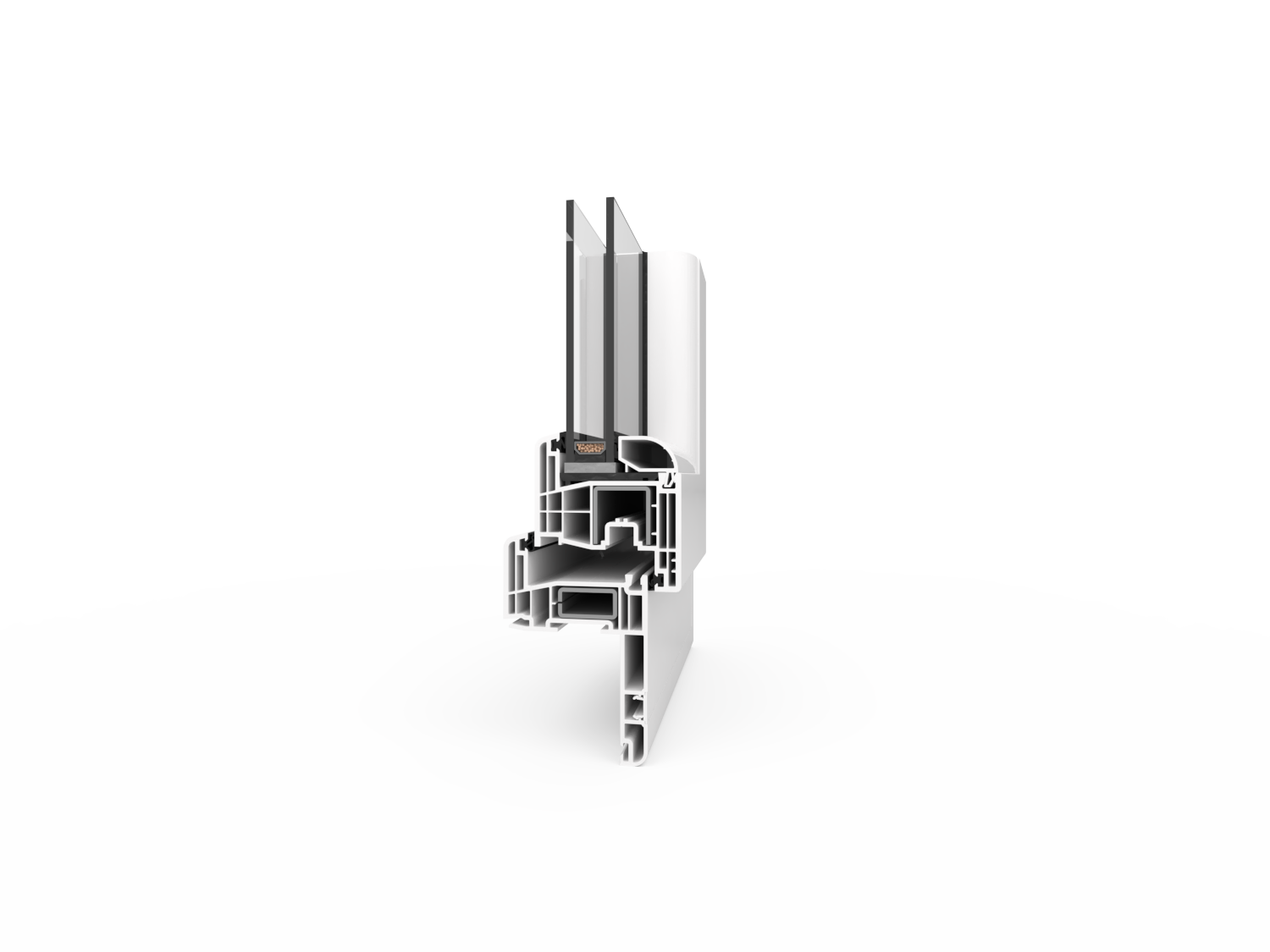

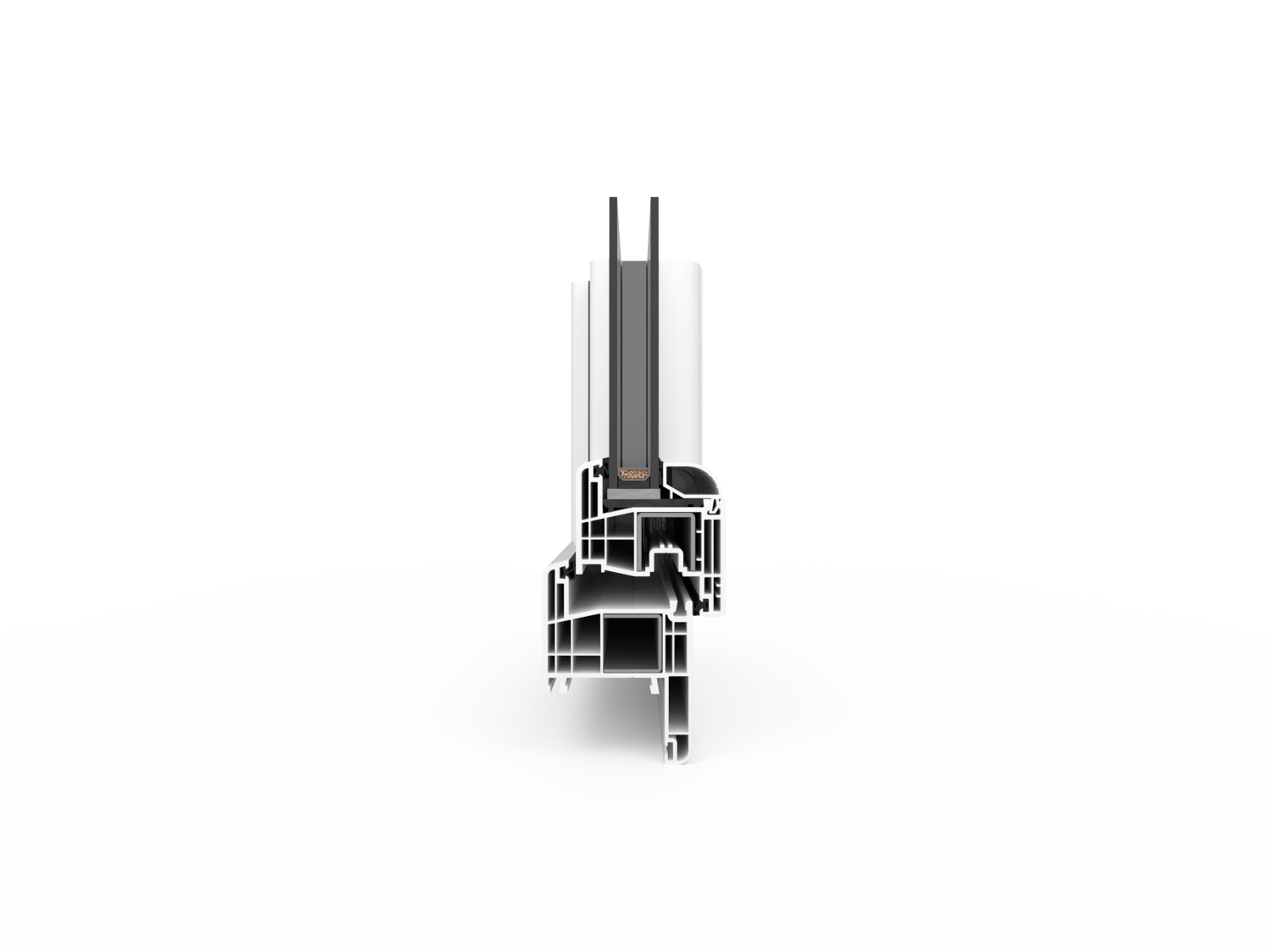

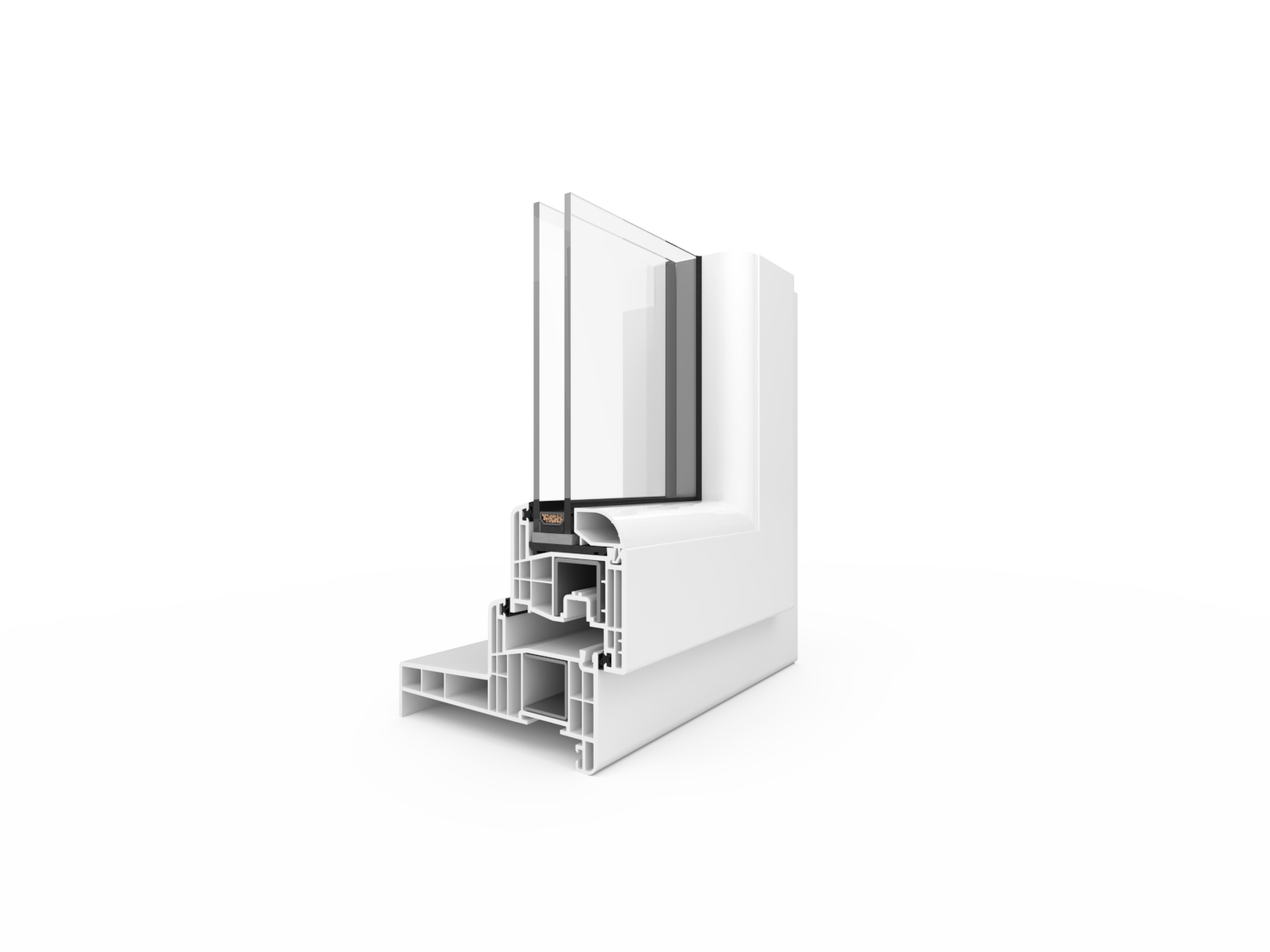

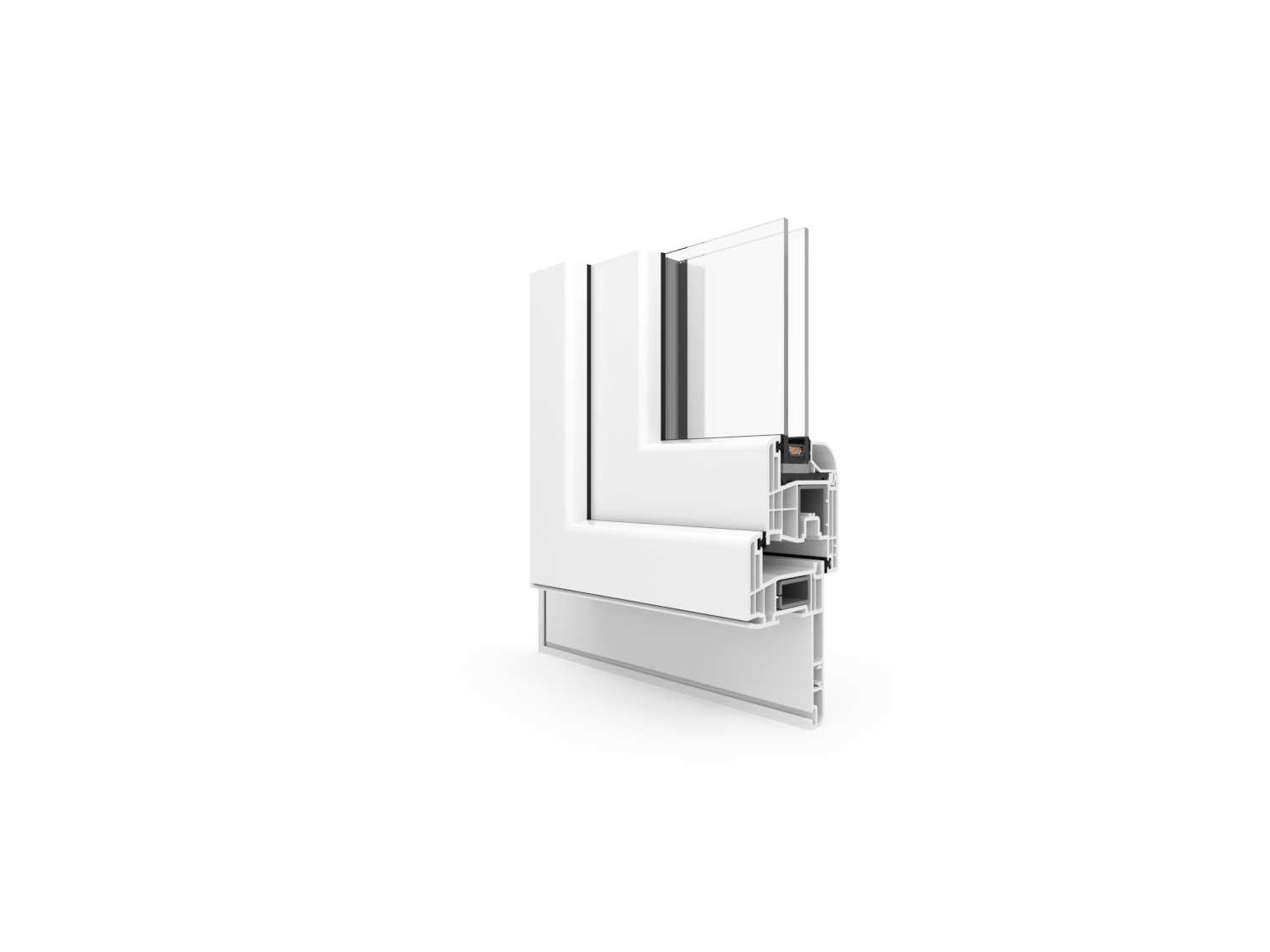

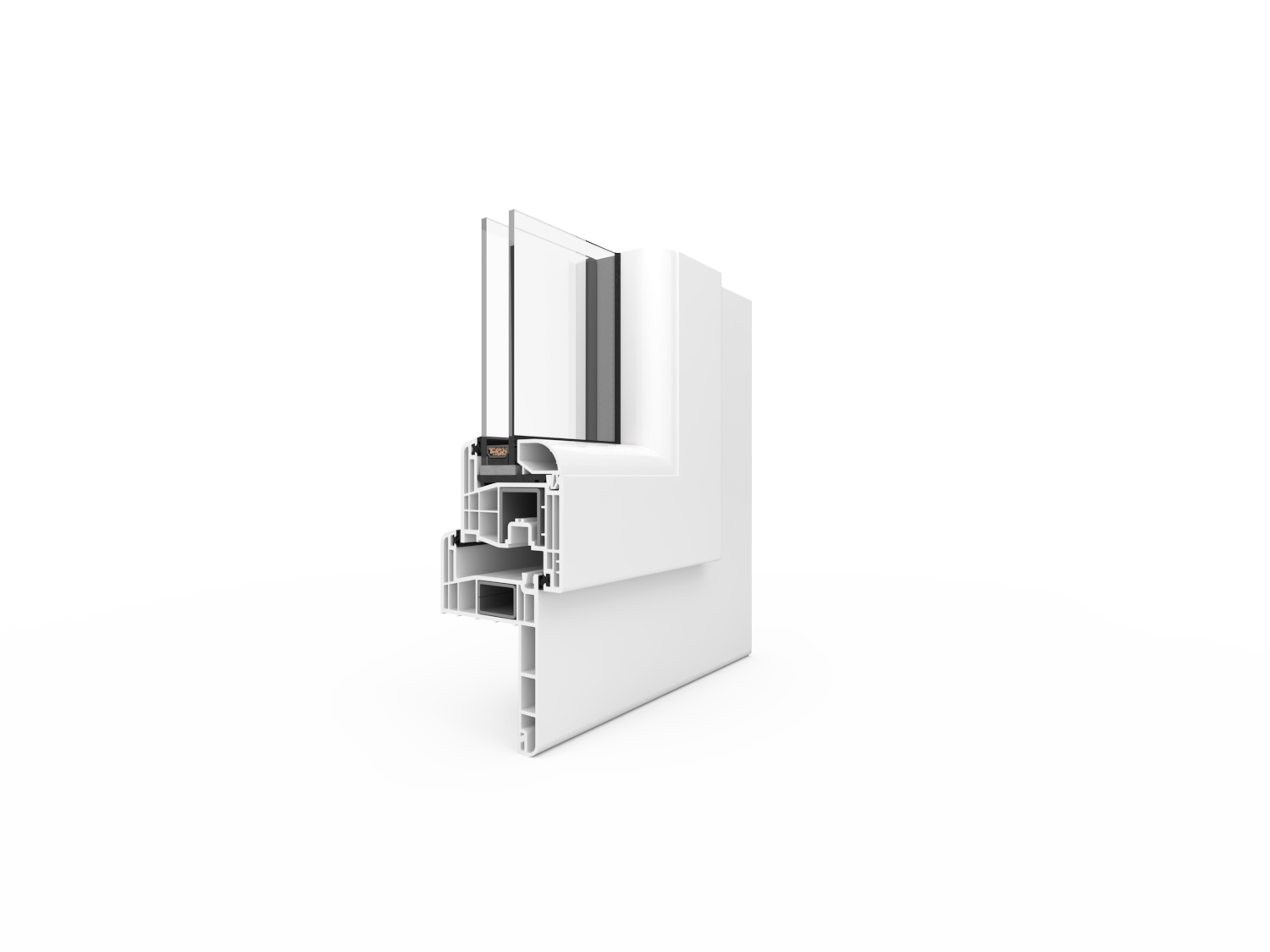

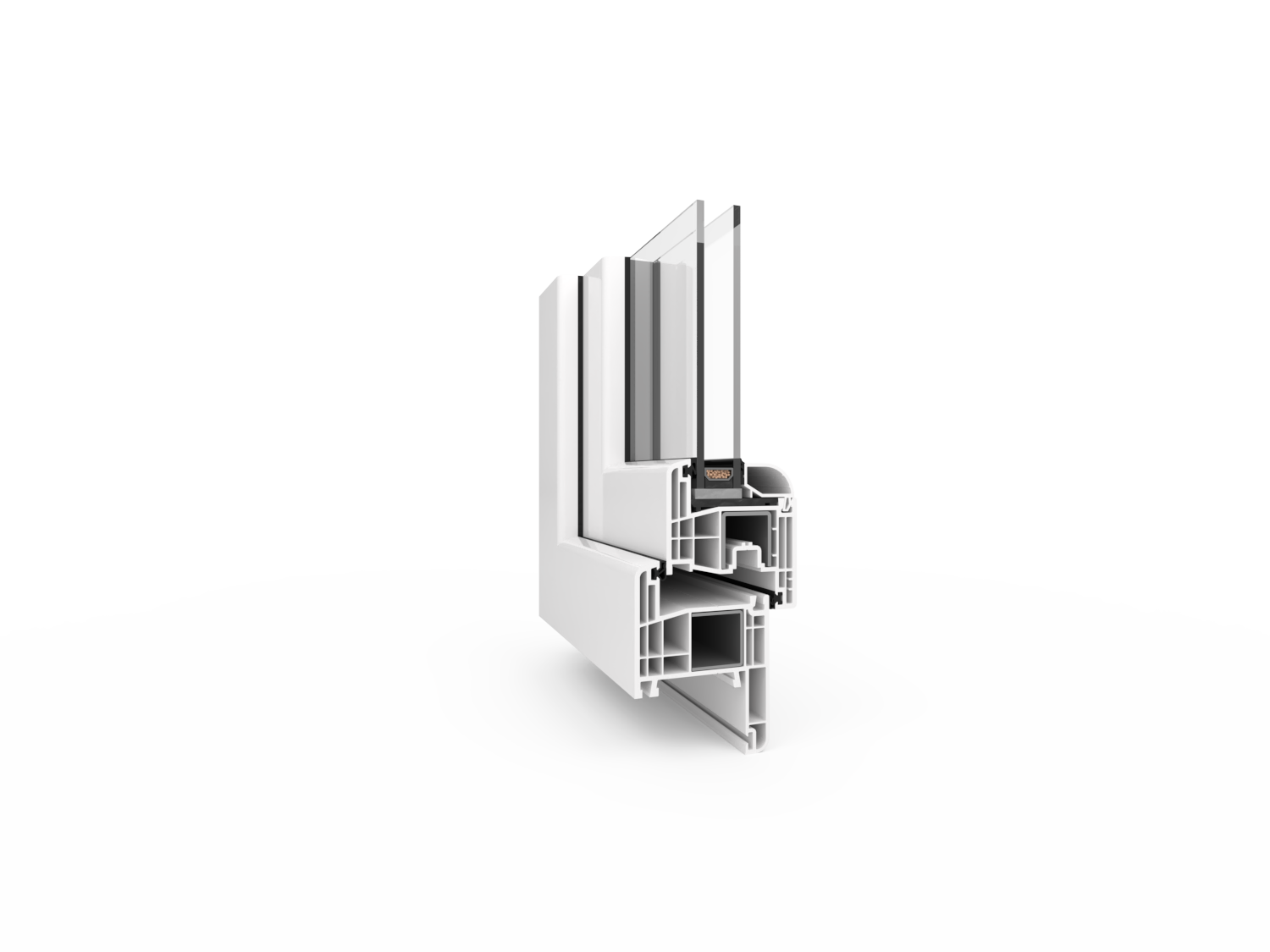

S8000 Renovation 40mm
Specification
- profile with a construction depth of 74 mm
- five anti-burglar latchesper sash as standard
- maximum window height: 2375 mm
- maximal glazing area (one sash): up to 2,45 m²
- glazing with units up to 48 mm
- 40 mm fin

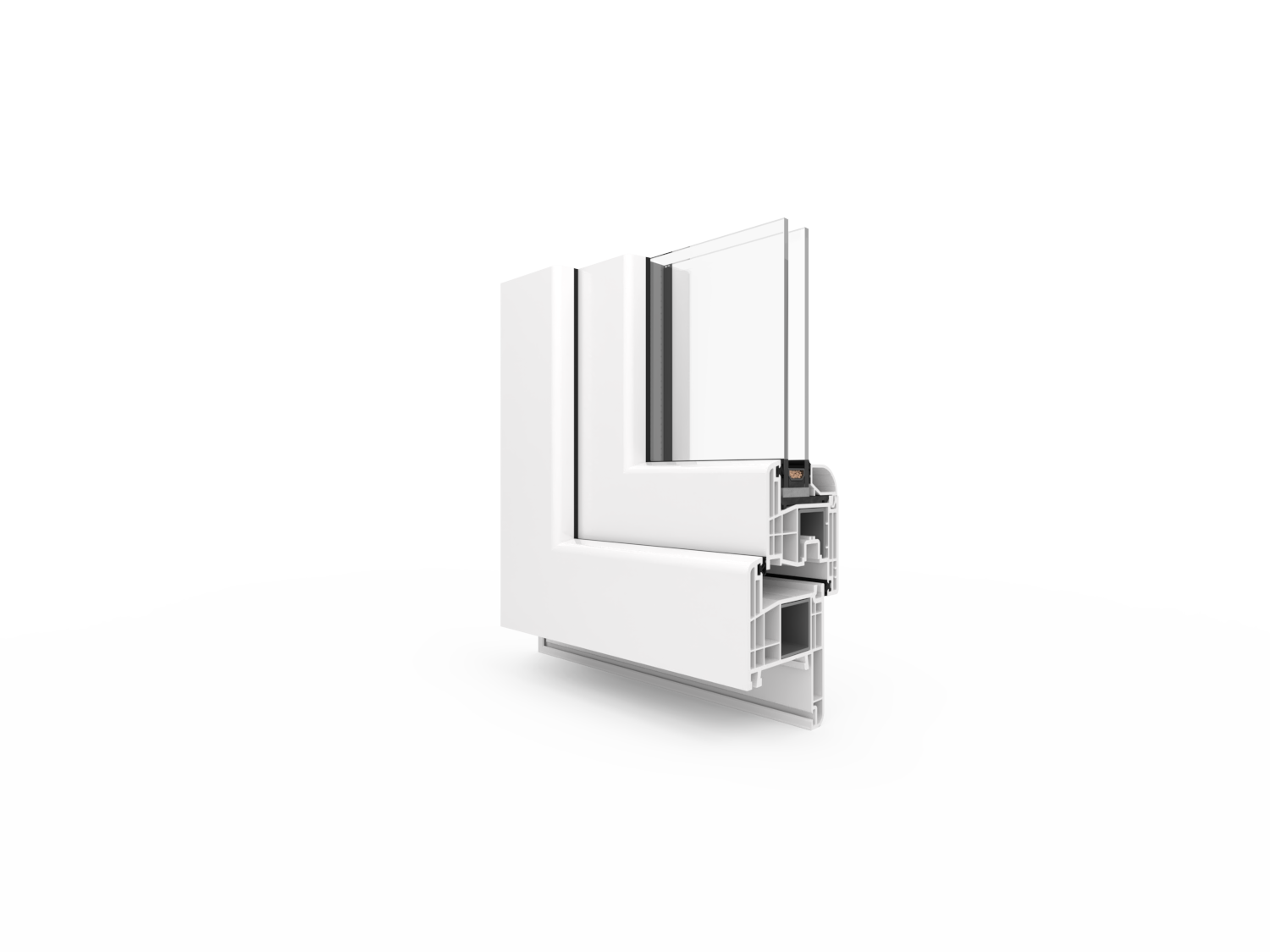

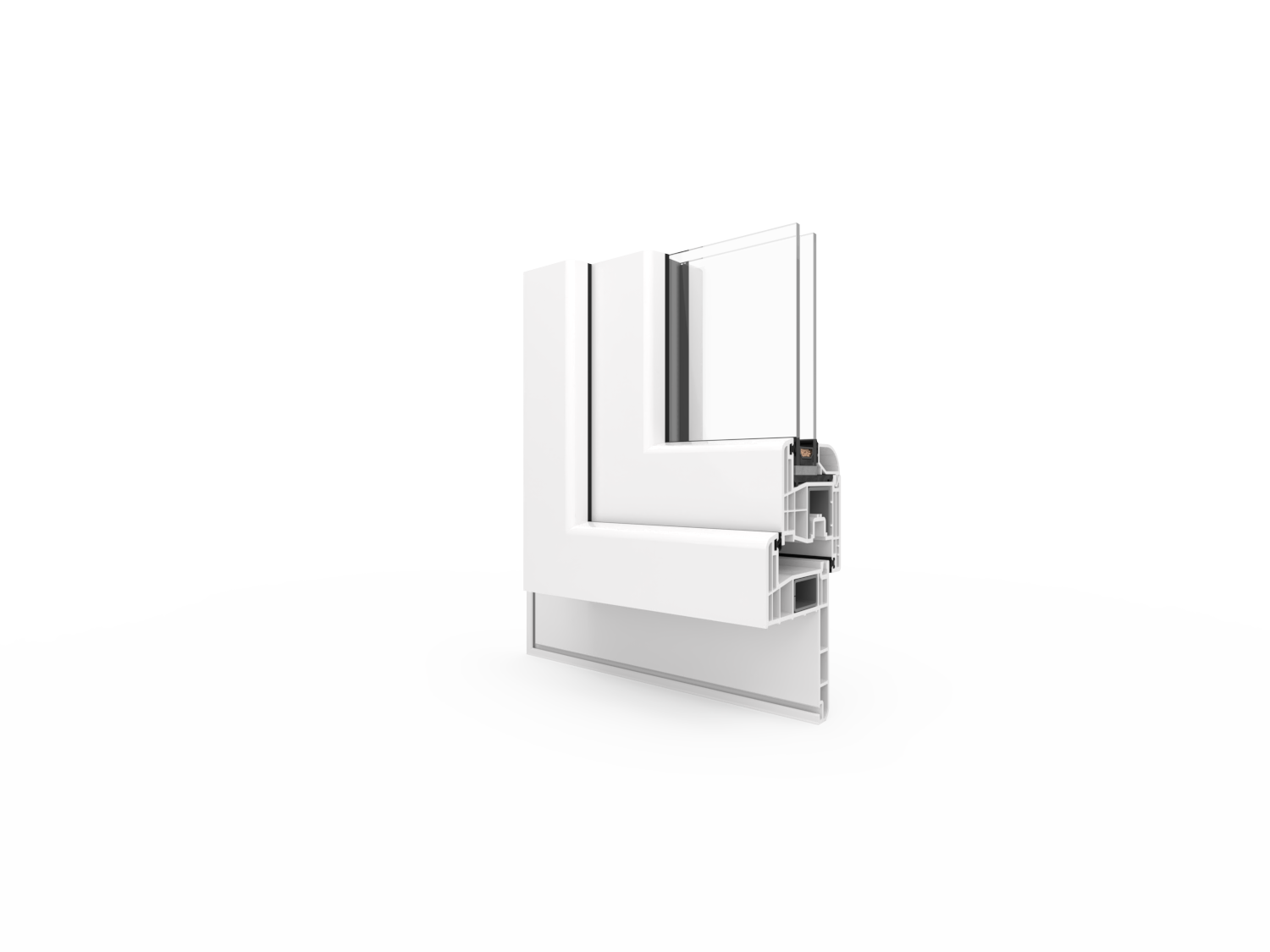

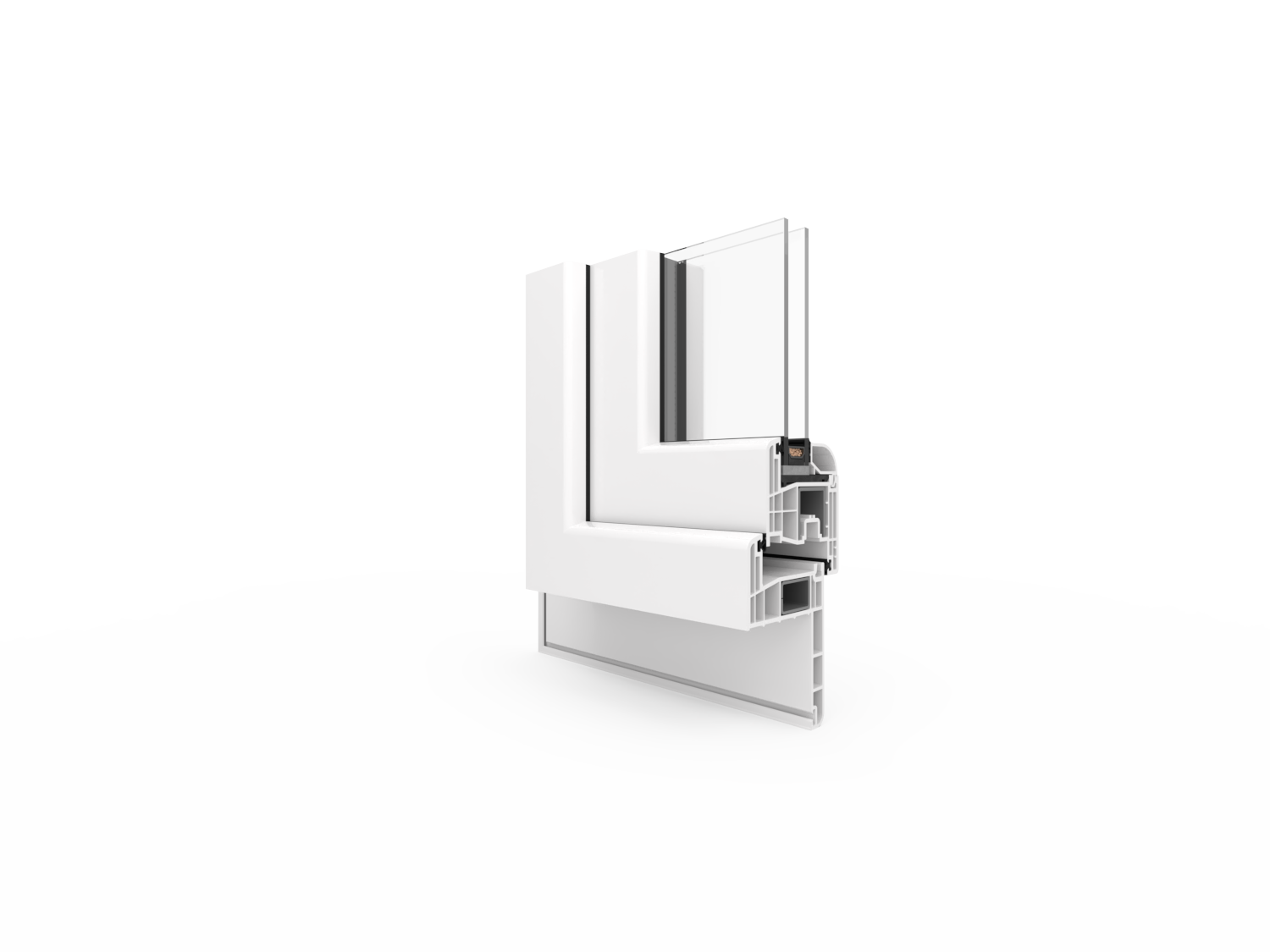

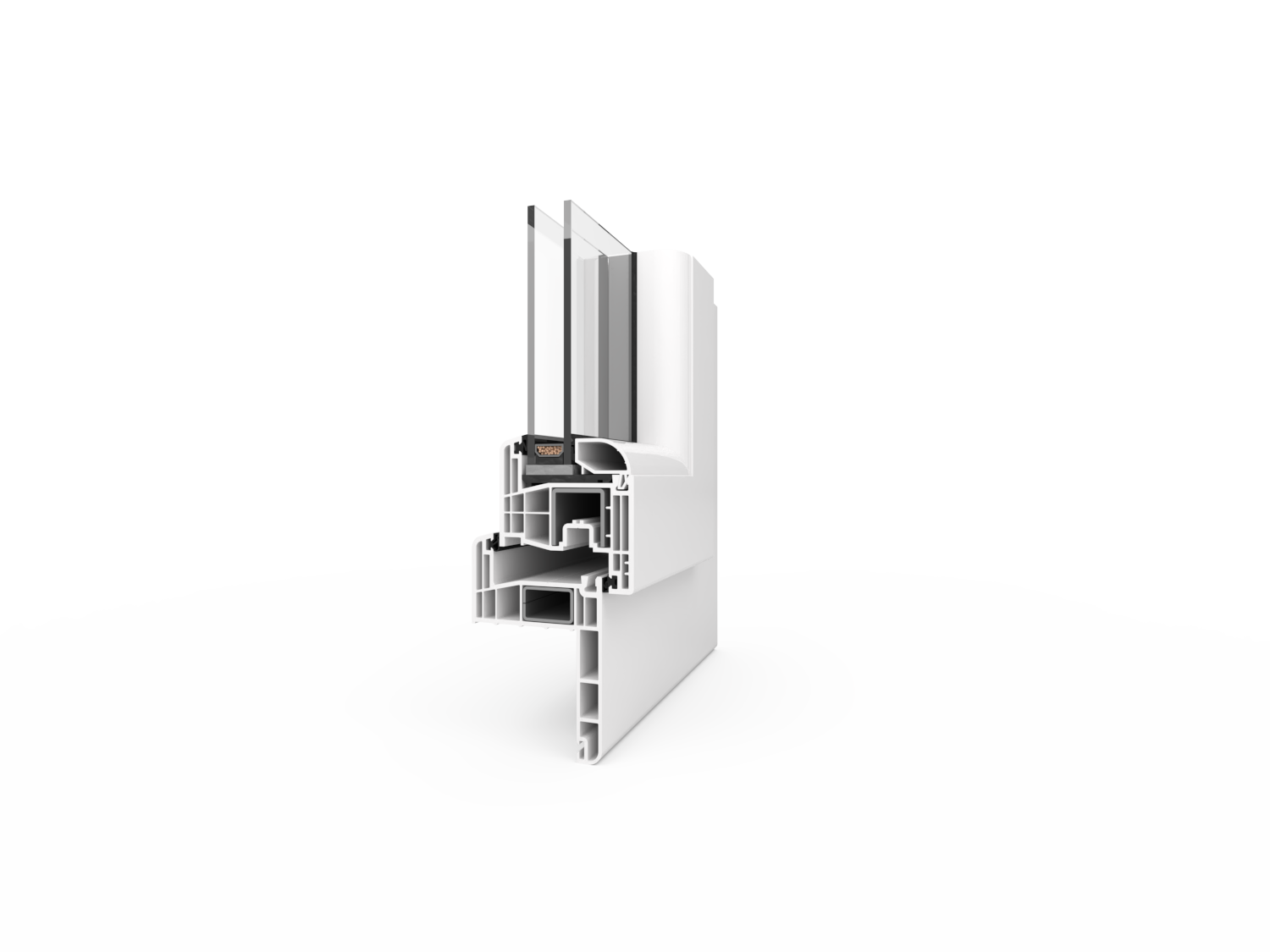

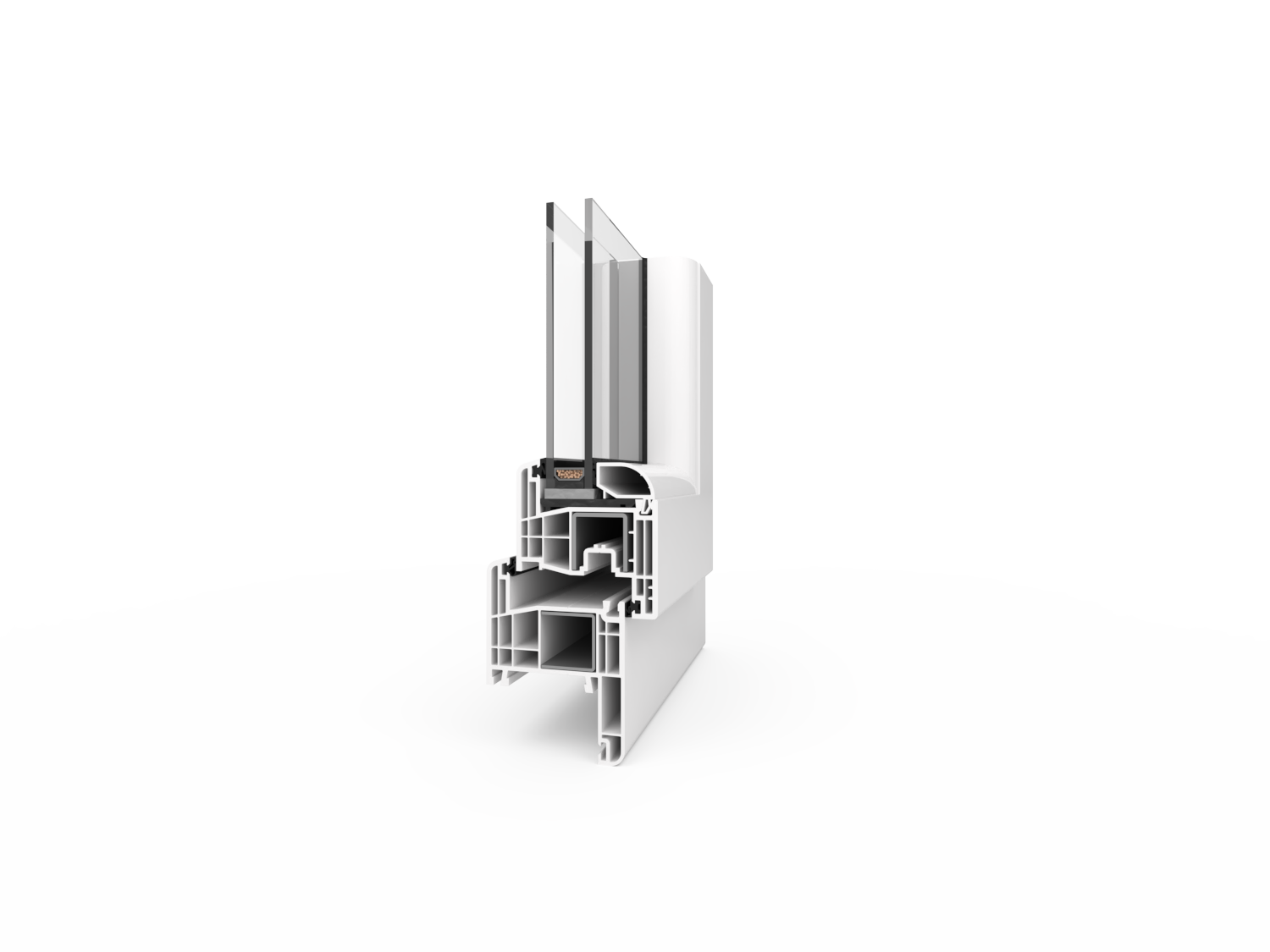

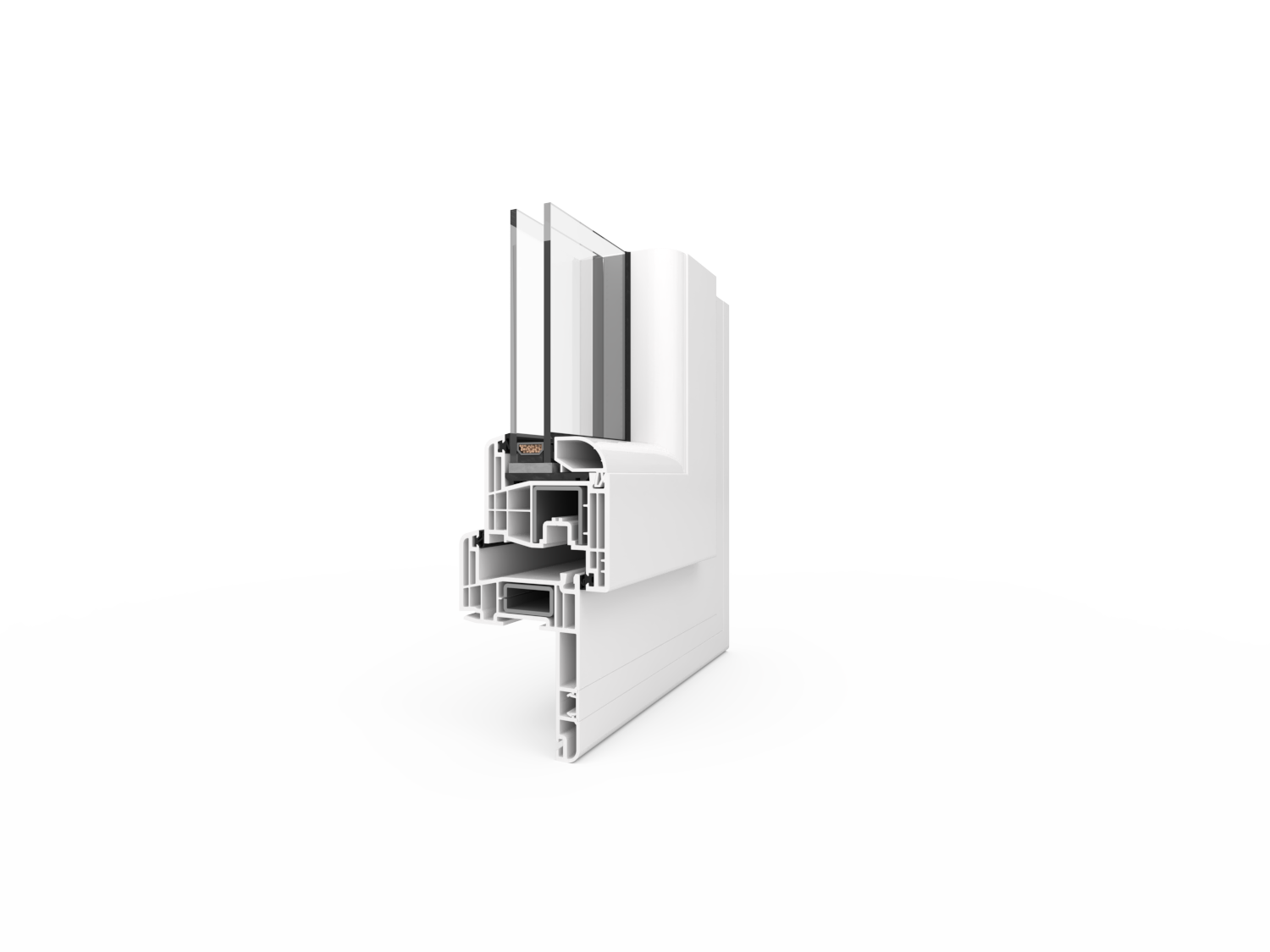

S8000 Renovation 64,5mm
Specification
- profile with a construction depth of 74 mm
- five anti-burglar latchesper sash as standard
- maximum window height: 2375 mm
- maximal glazing area (one sash): up to 2,45 m²
- glazing with units up to 48 mm
- 64,5 mm fin

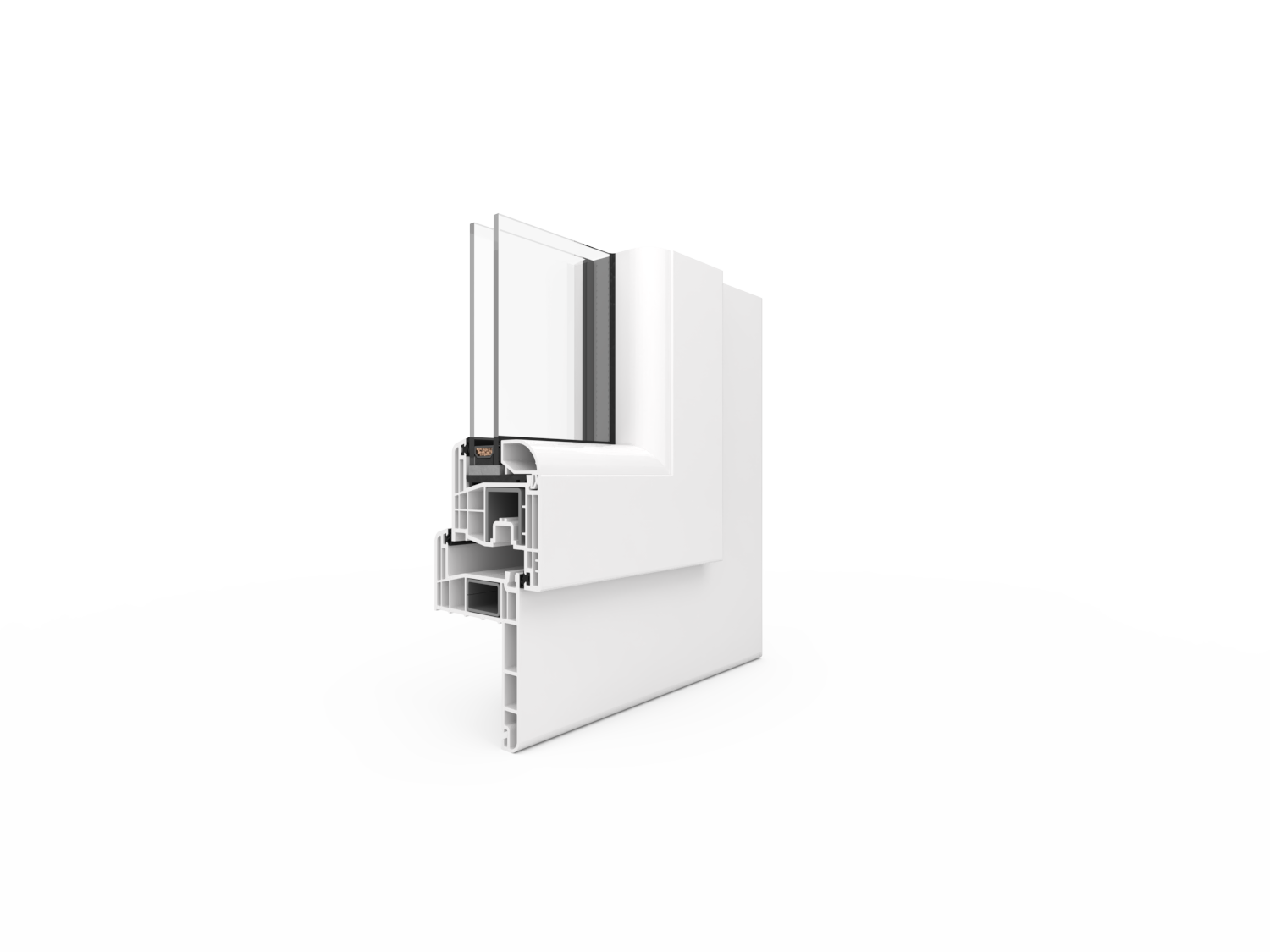

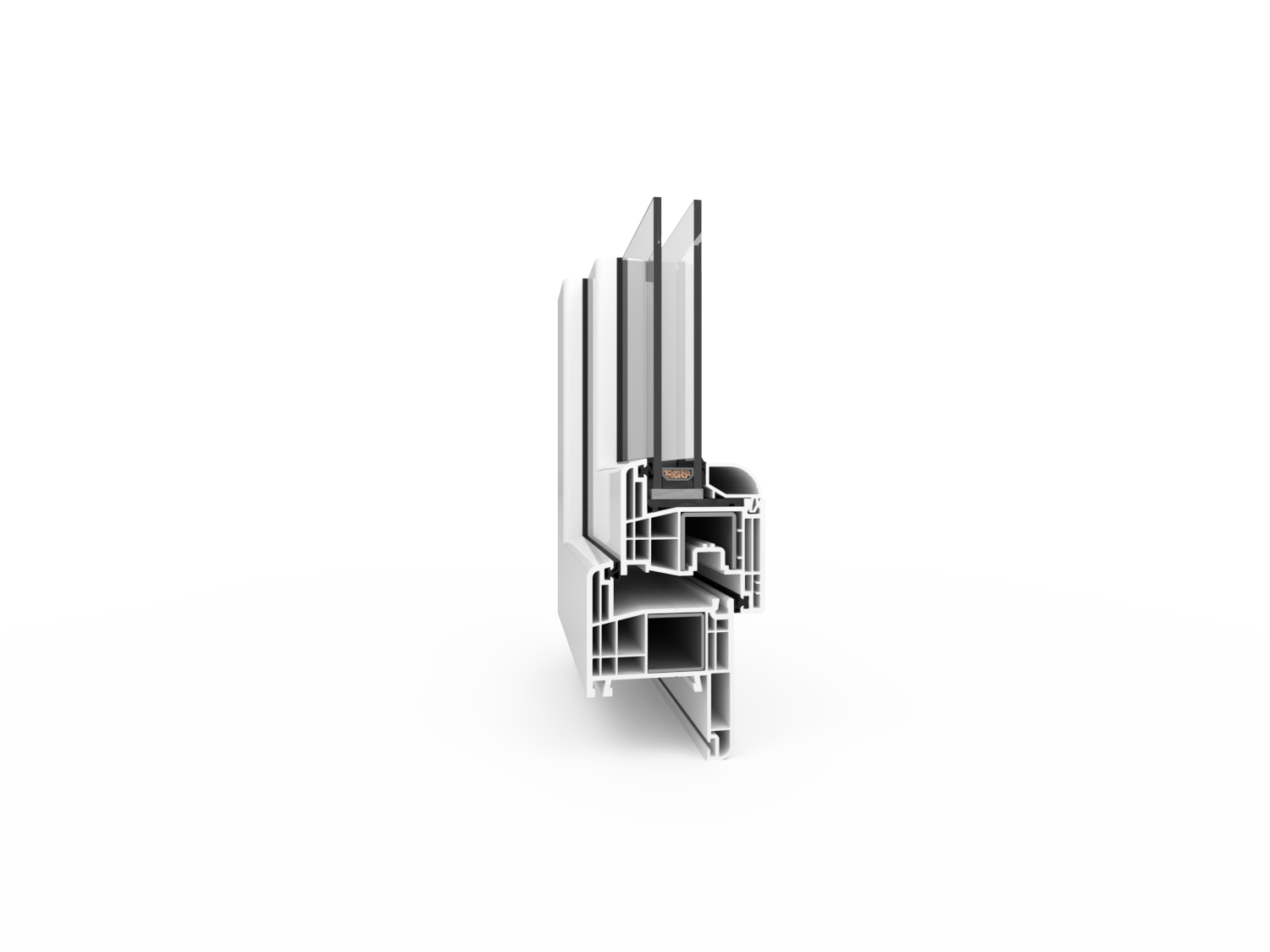

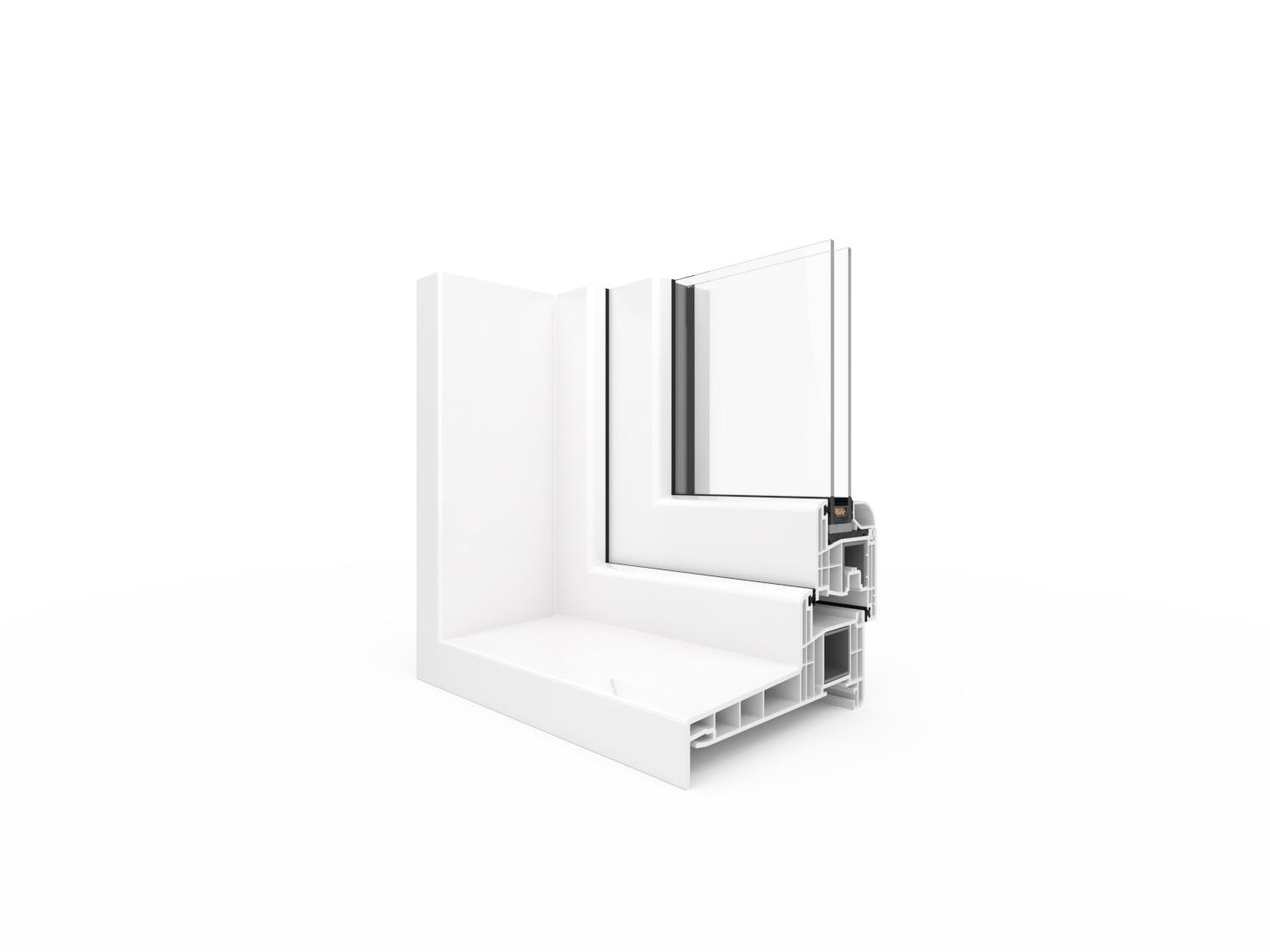

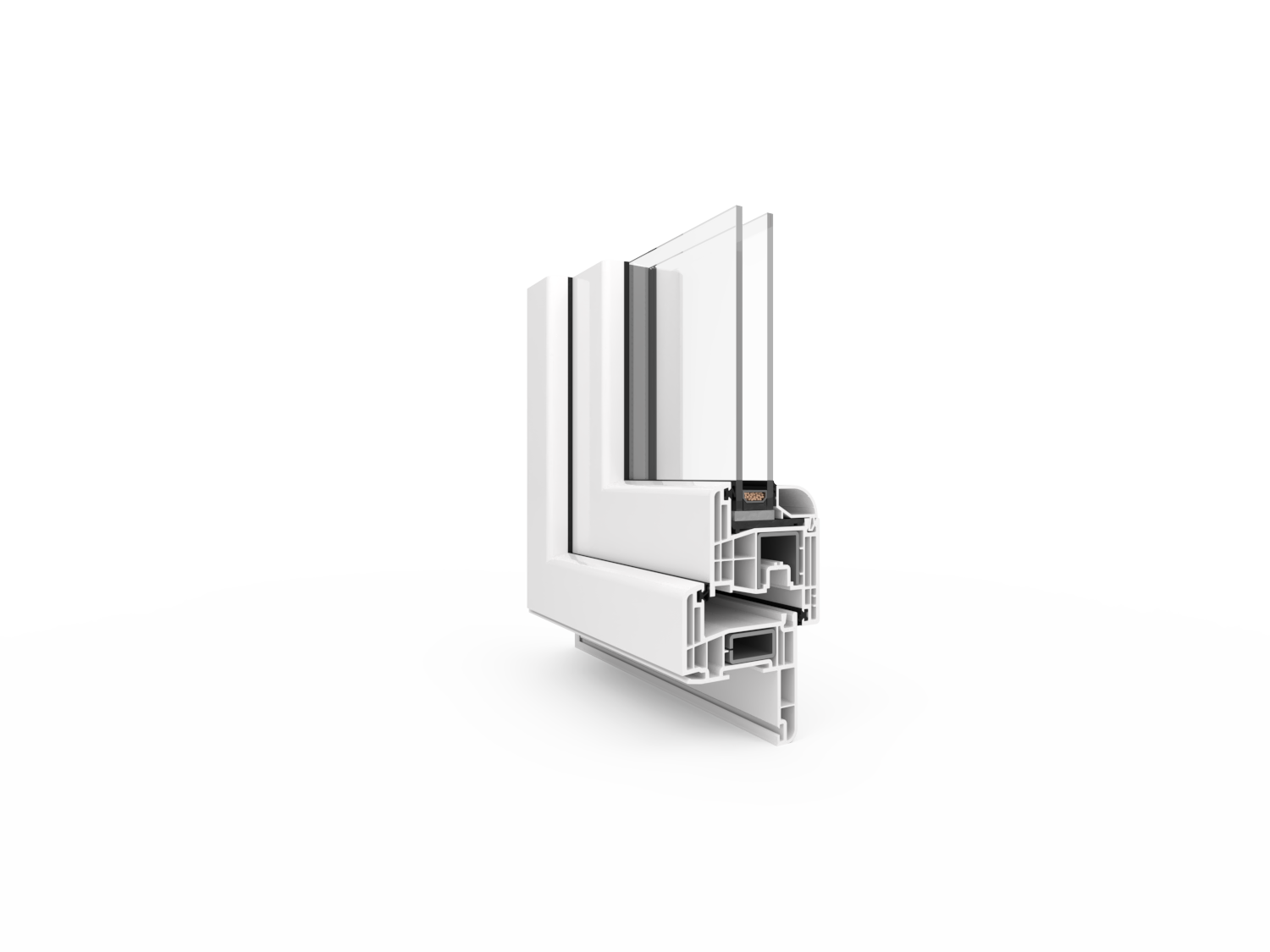

S8000 Renovation 35mm
Specification
- profile with a construction depth of 74 mm
- five anti-burglar latchesper sash as standard
- maximum window height: 2375 mm
- maximal glazing area (one sash): up to 2,45 m²
- glazing with units up to 48 mm
- 35 mm fin

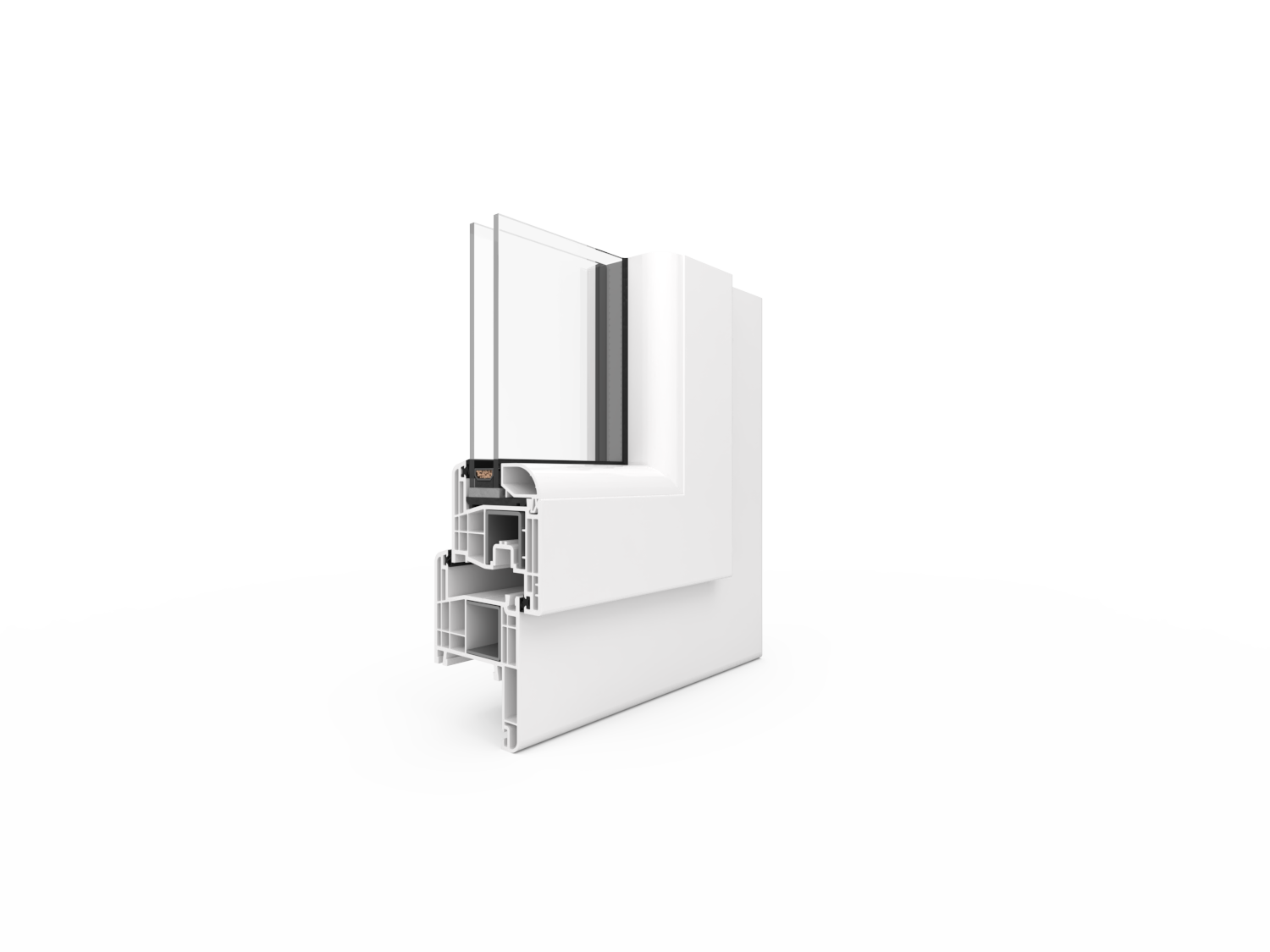

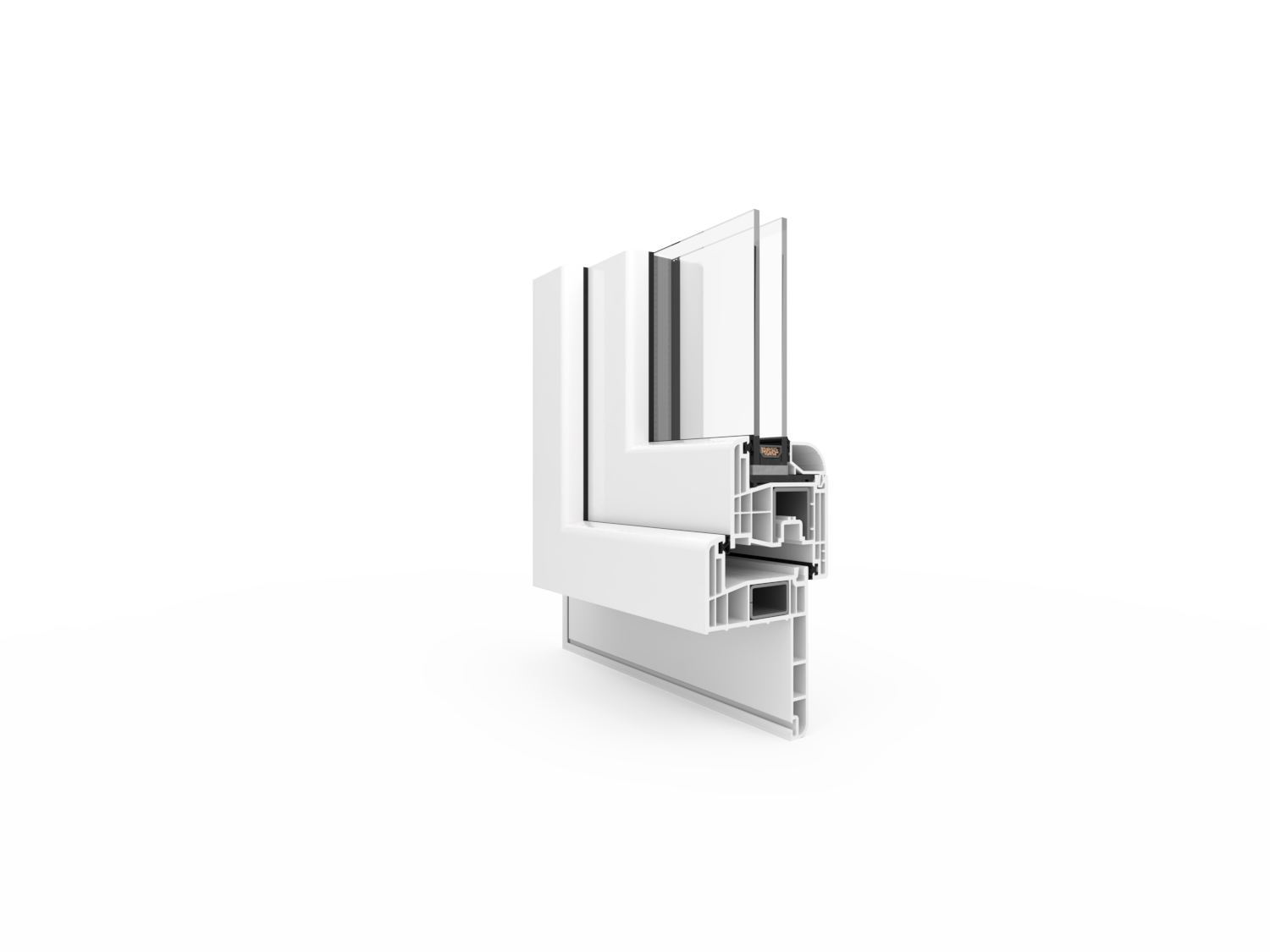

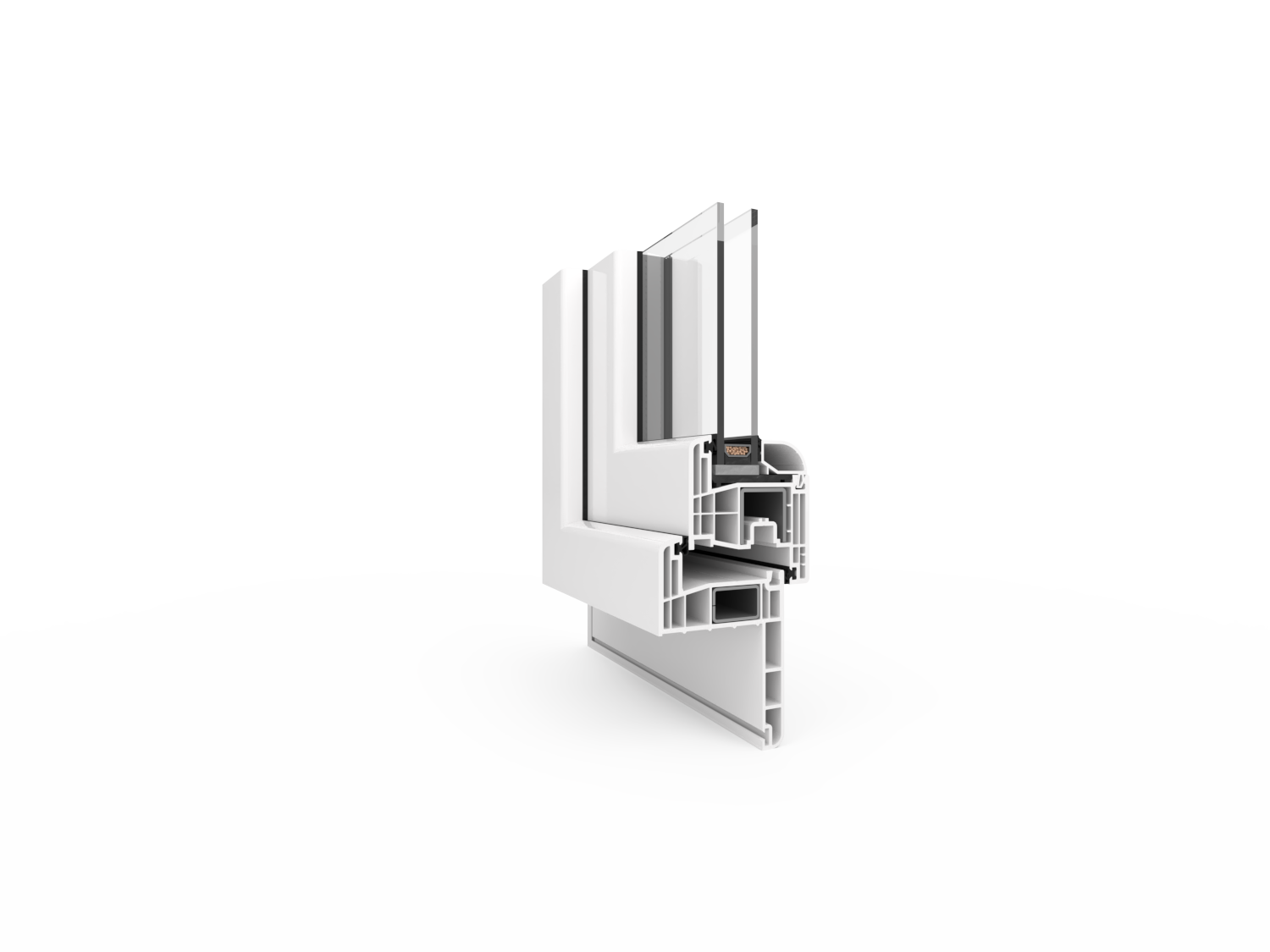

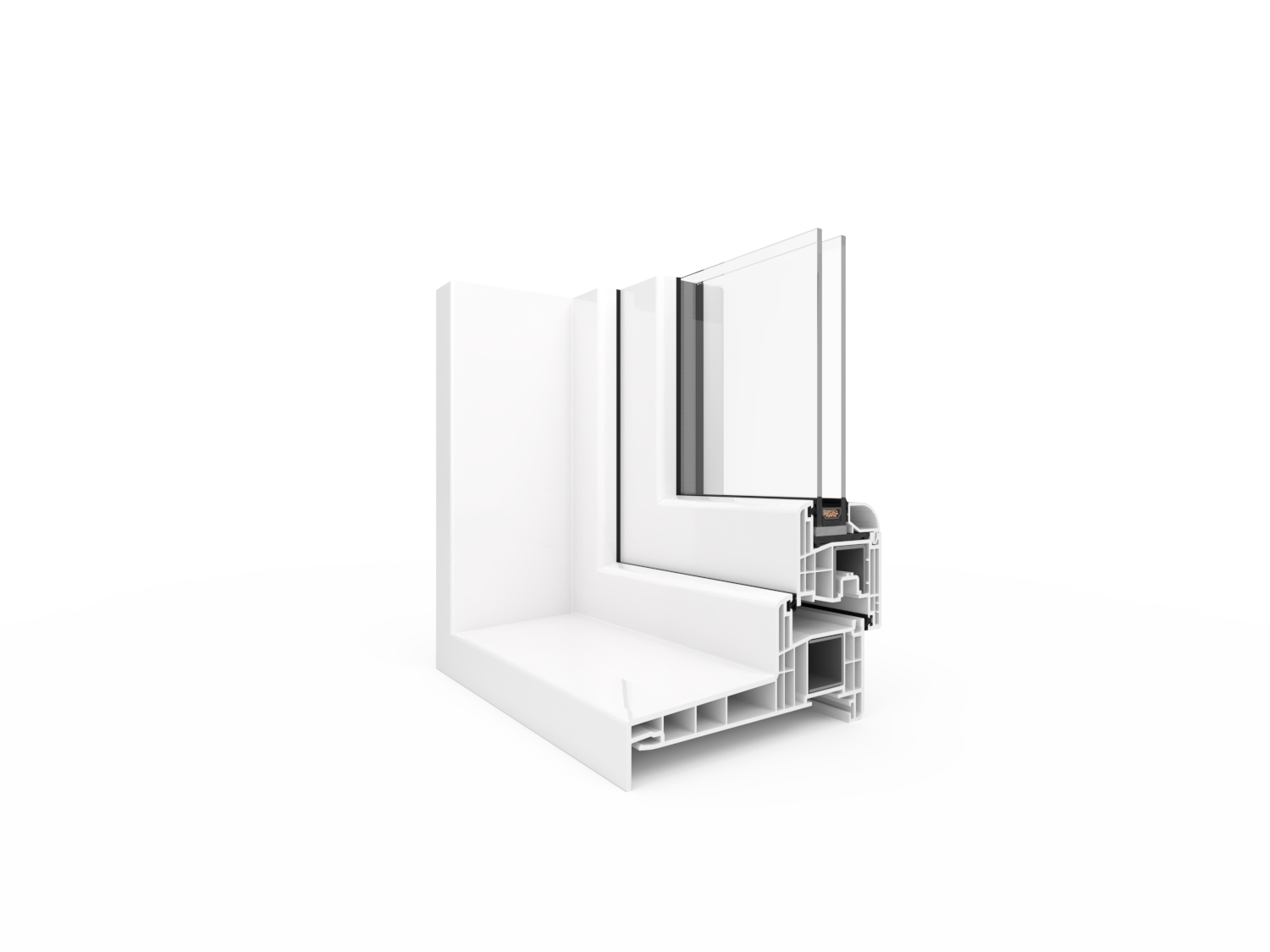

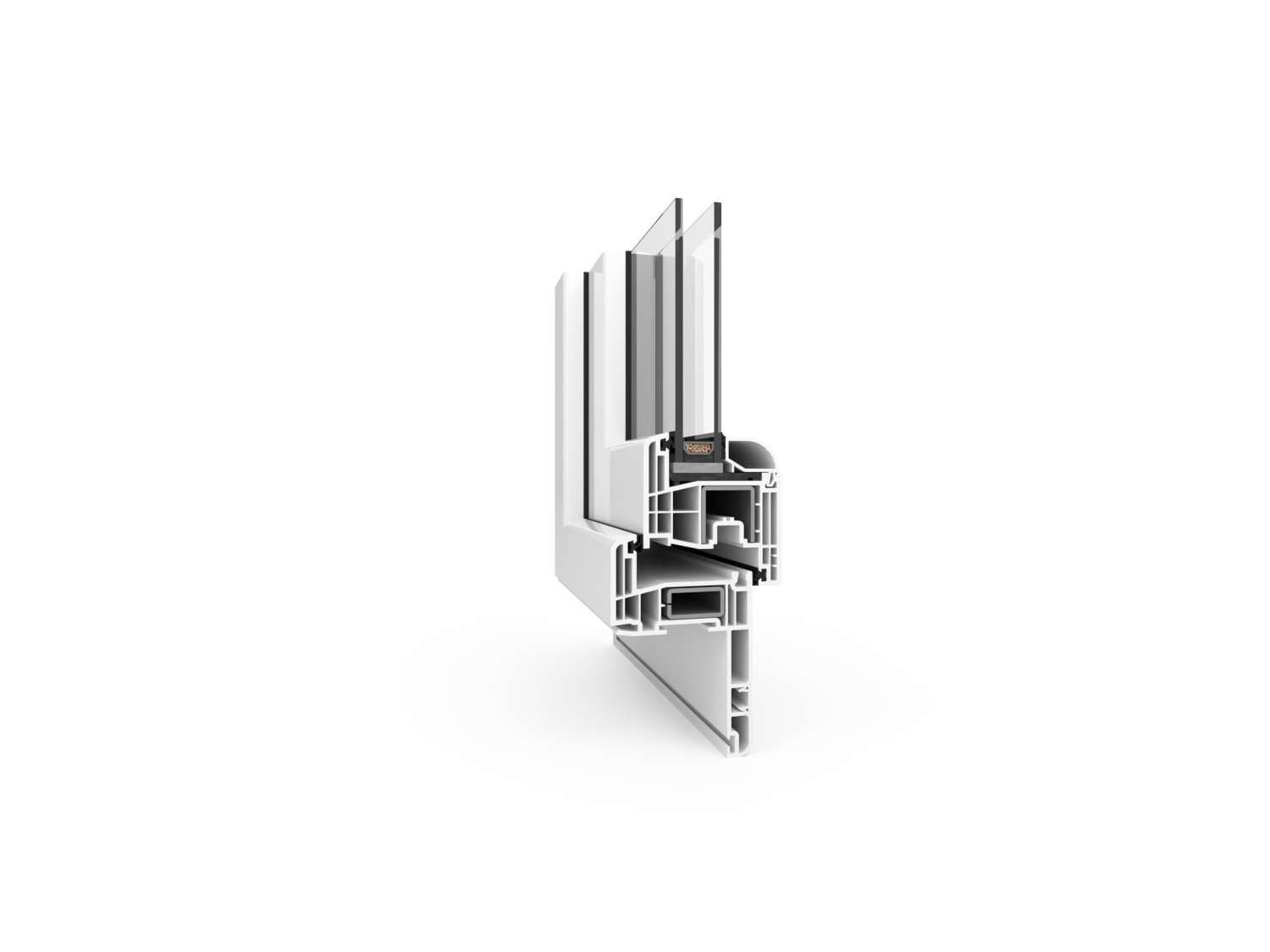

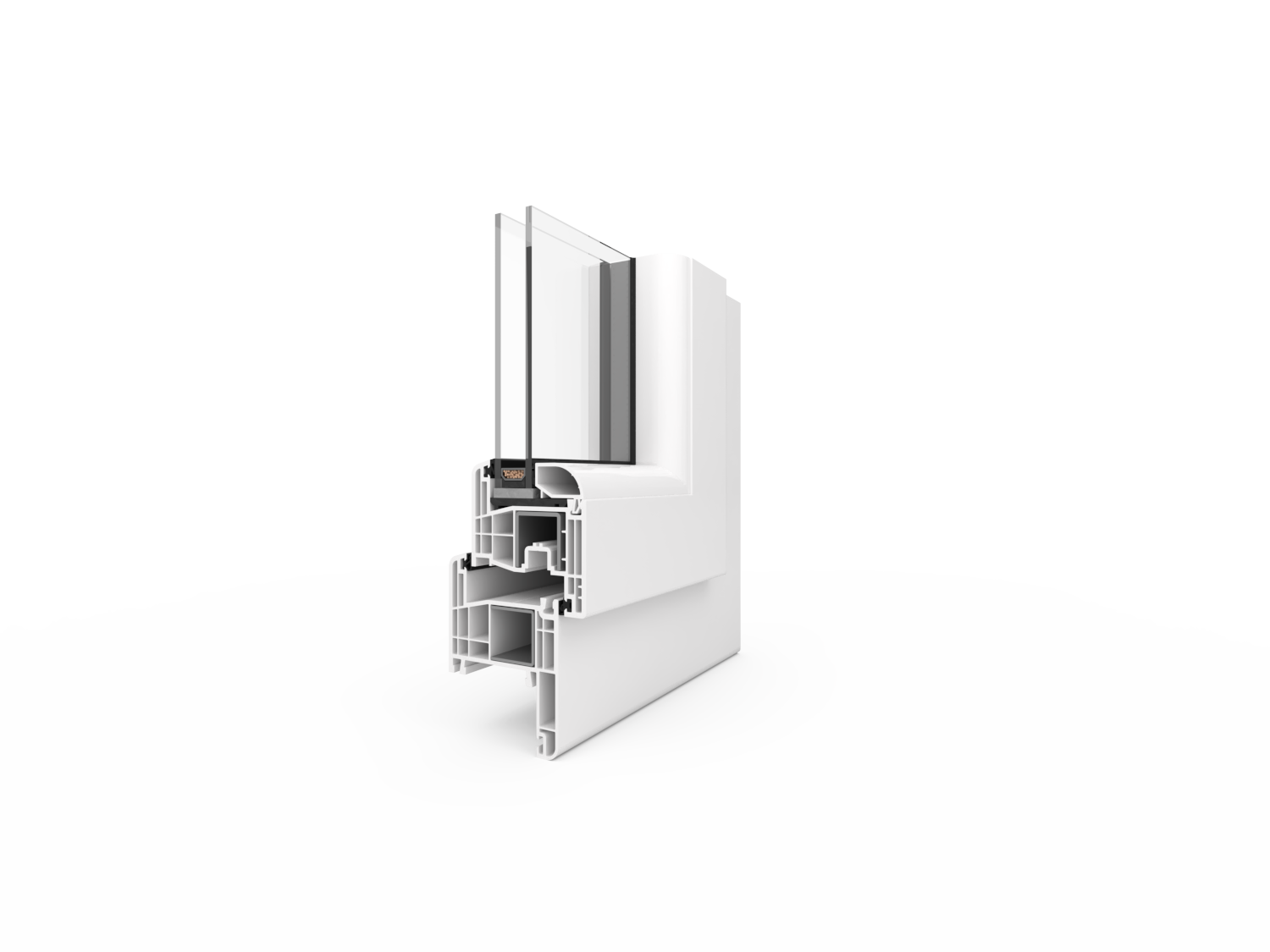

S8000 Renovation 65mm
Specification
- profile with a construction depth of 74 mm
- five anti-burglar latchesper sash as standard
- maximum window height: 2375 mm
- maximal glazing area (one sash): up to 2,45 m²
- glazing with units up to 48 mm
- 65 mm fin

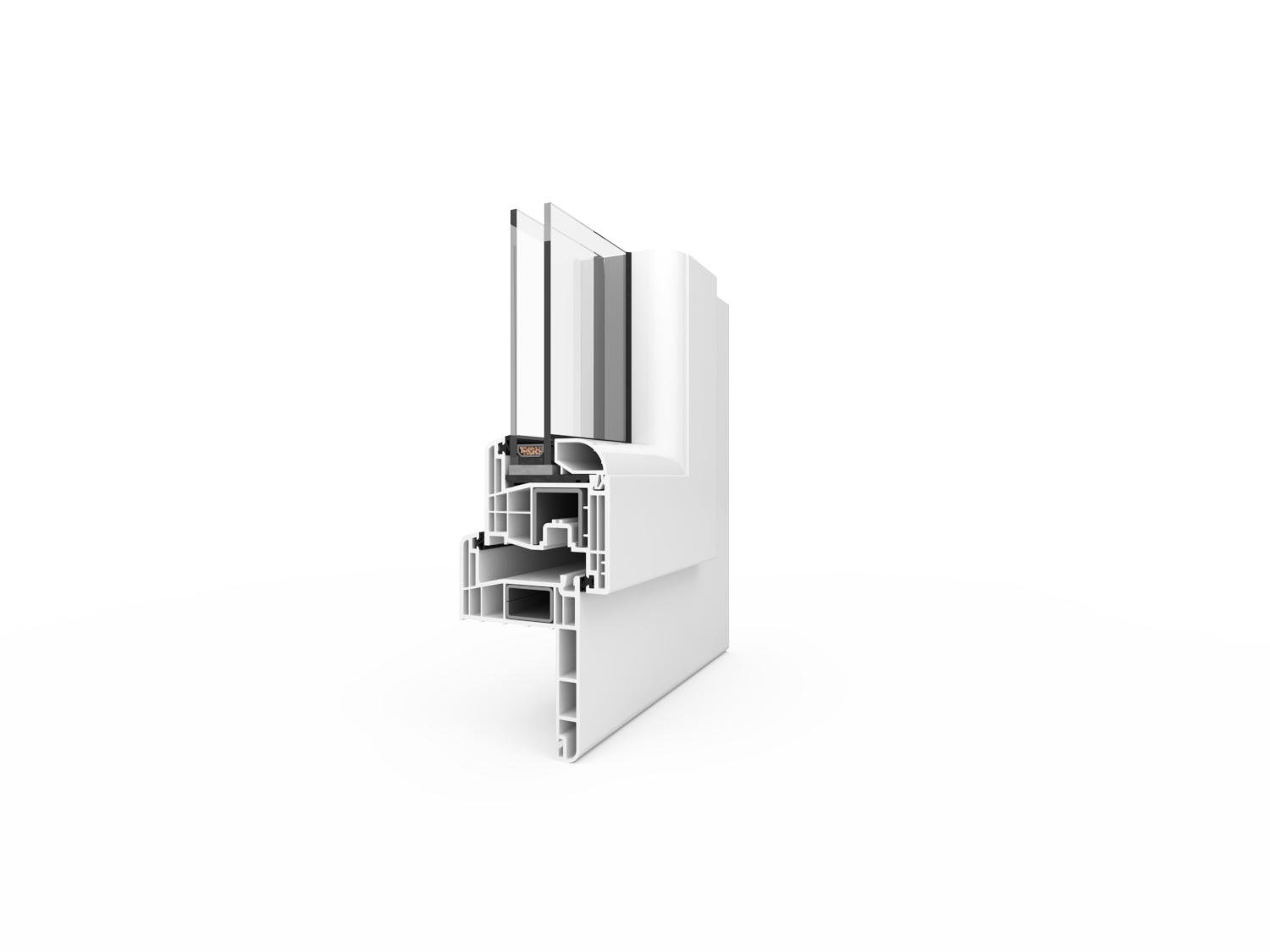

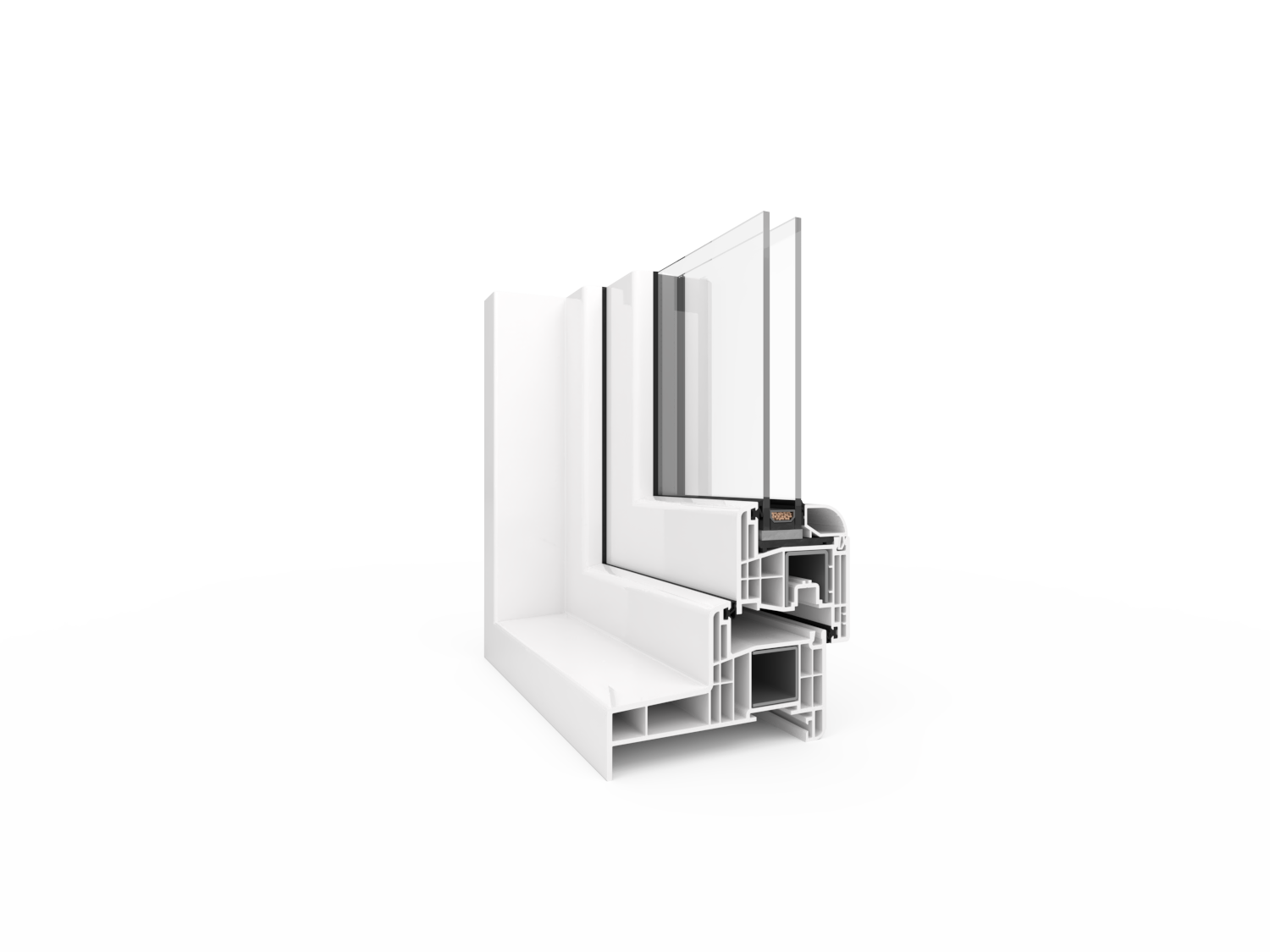

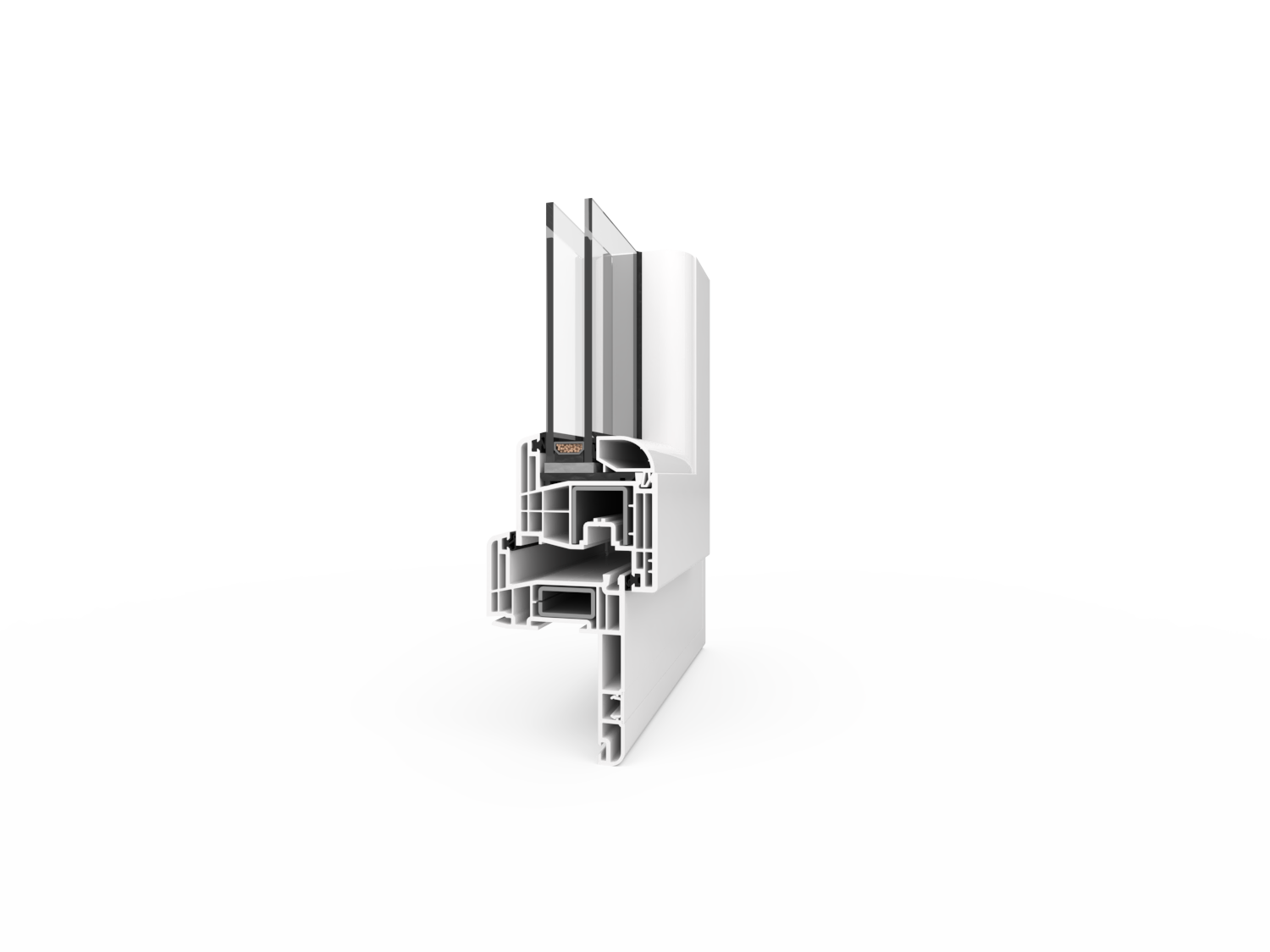

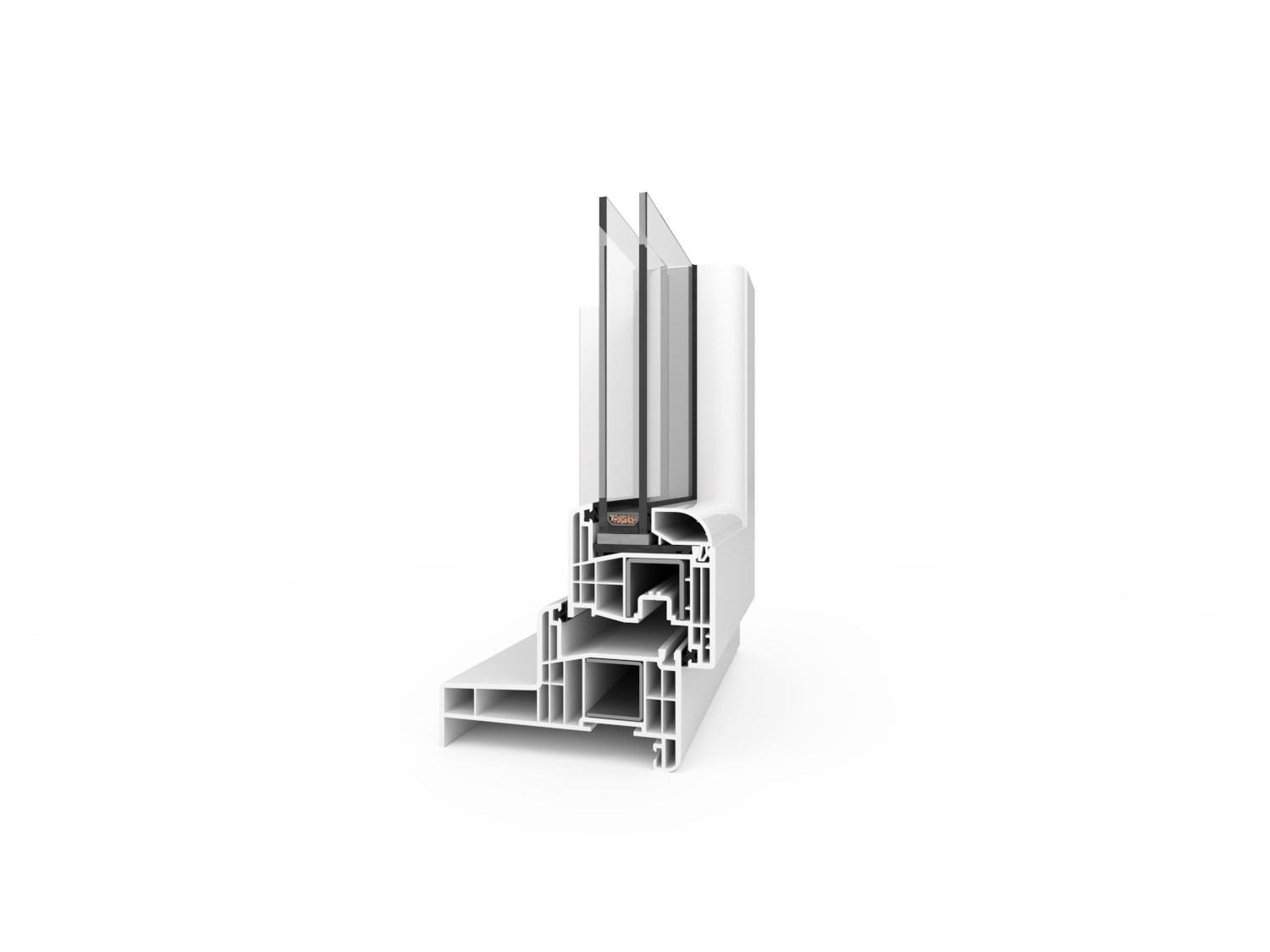

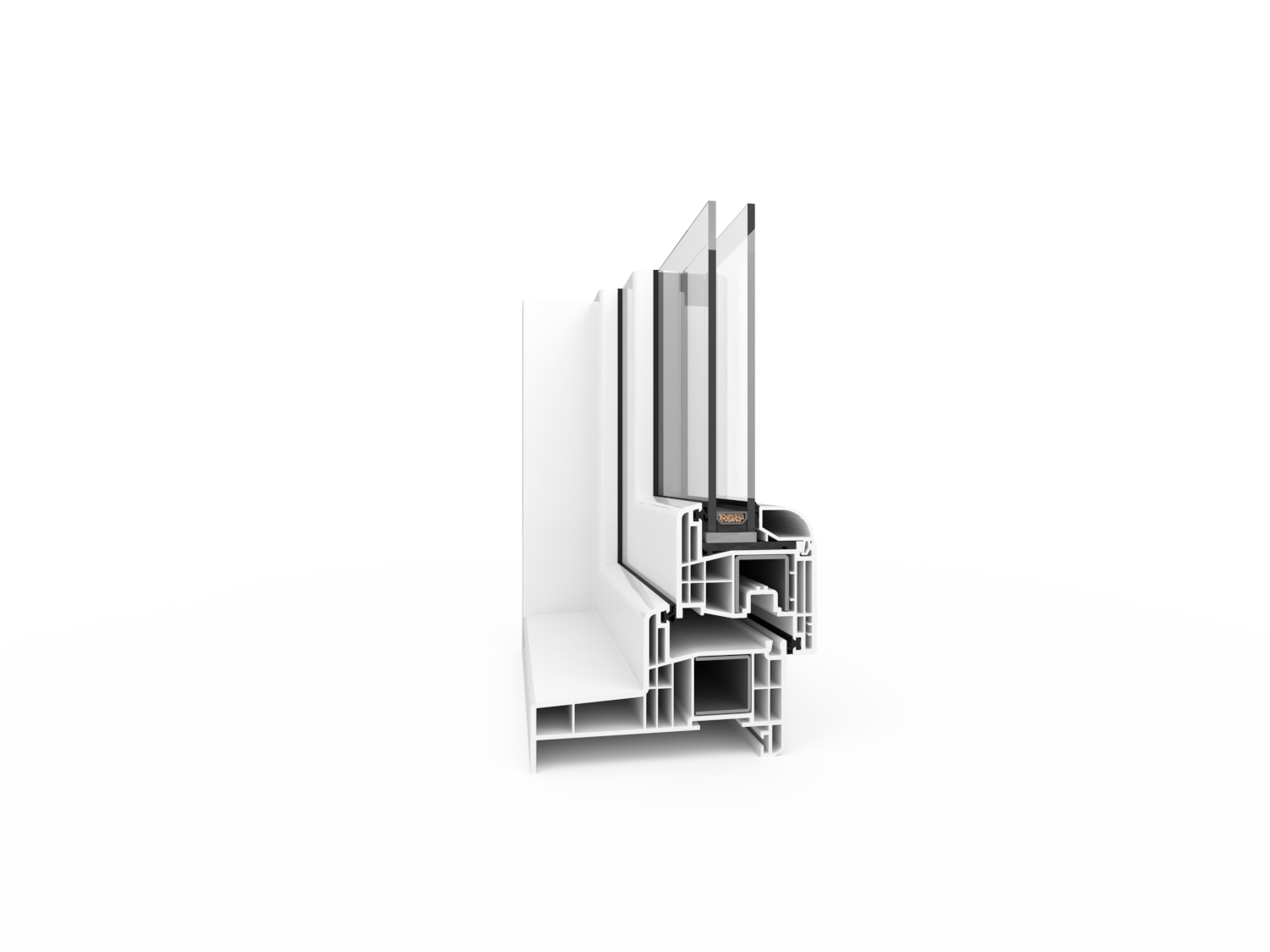

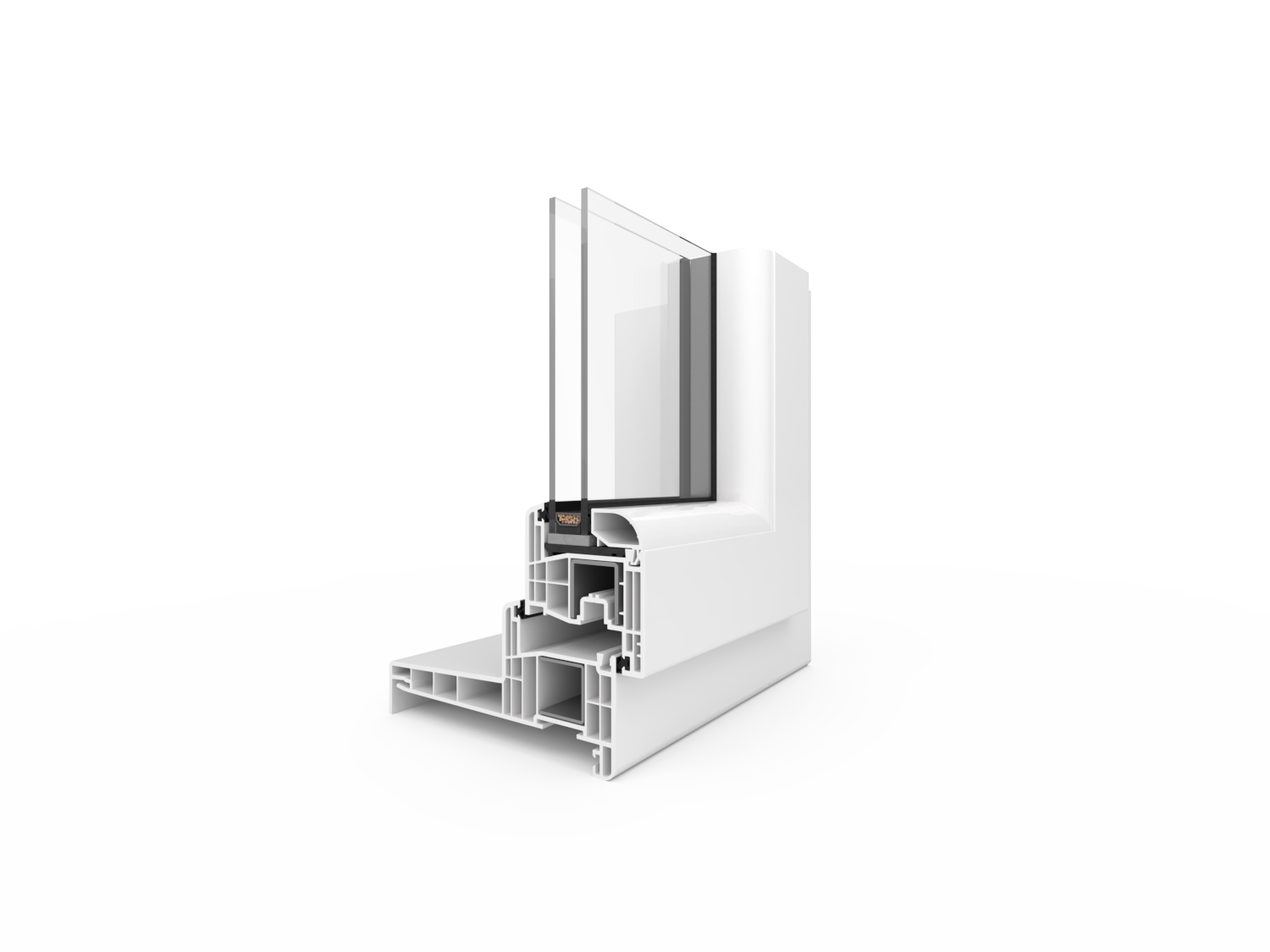

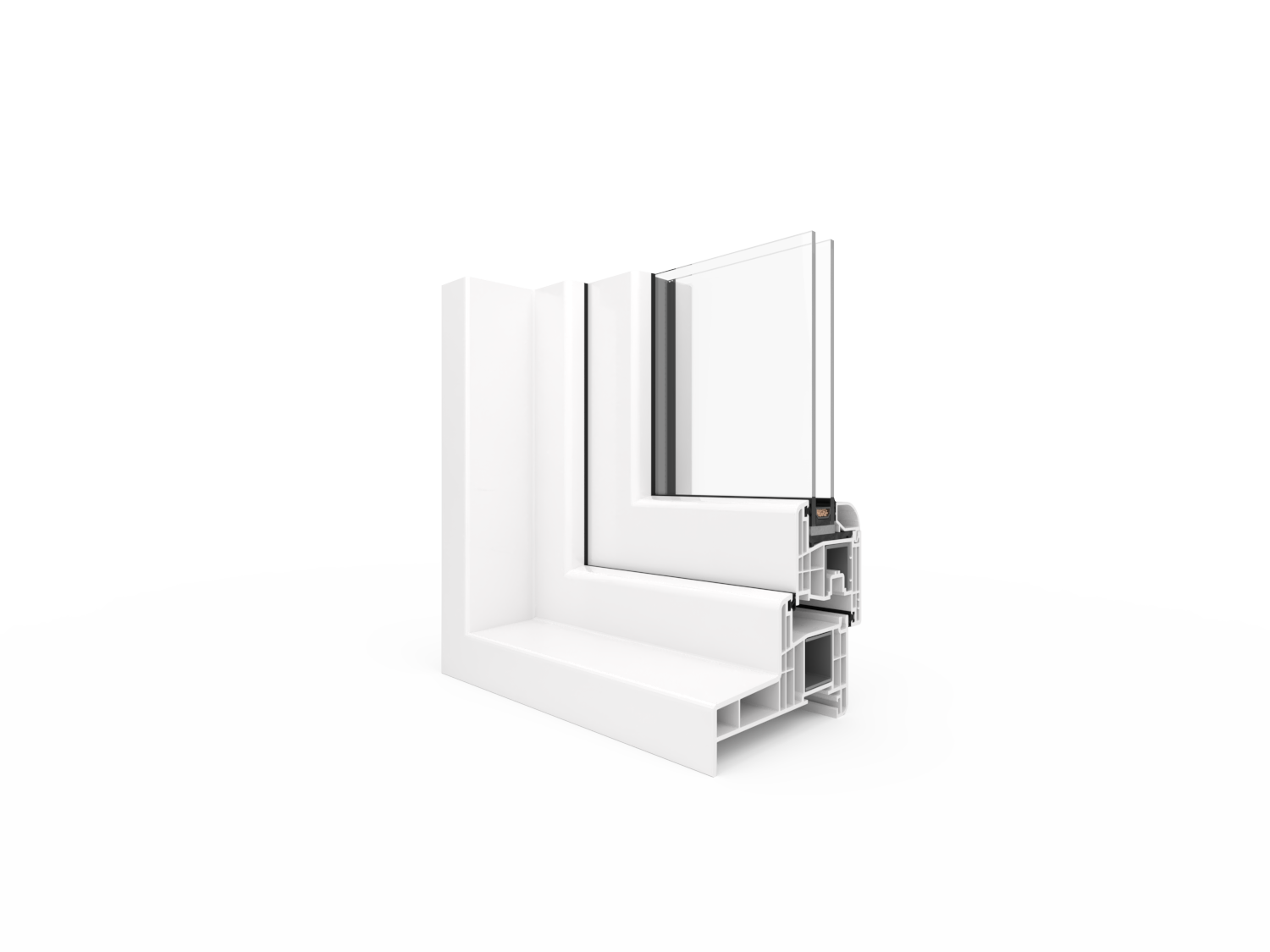

S8000 Monoblock 129 mm
Specification
- profile with a construction depth of 129 mm
- five anti-burglar latchesper sash as standard
- maximum window height: 2375 mm
- maximal glazing area (one sash): up to 2,45 m²
- glazing with units up to 48 mm

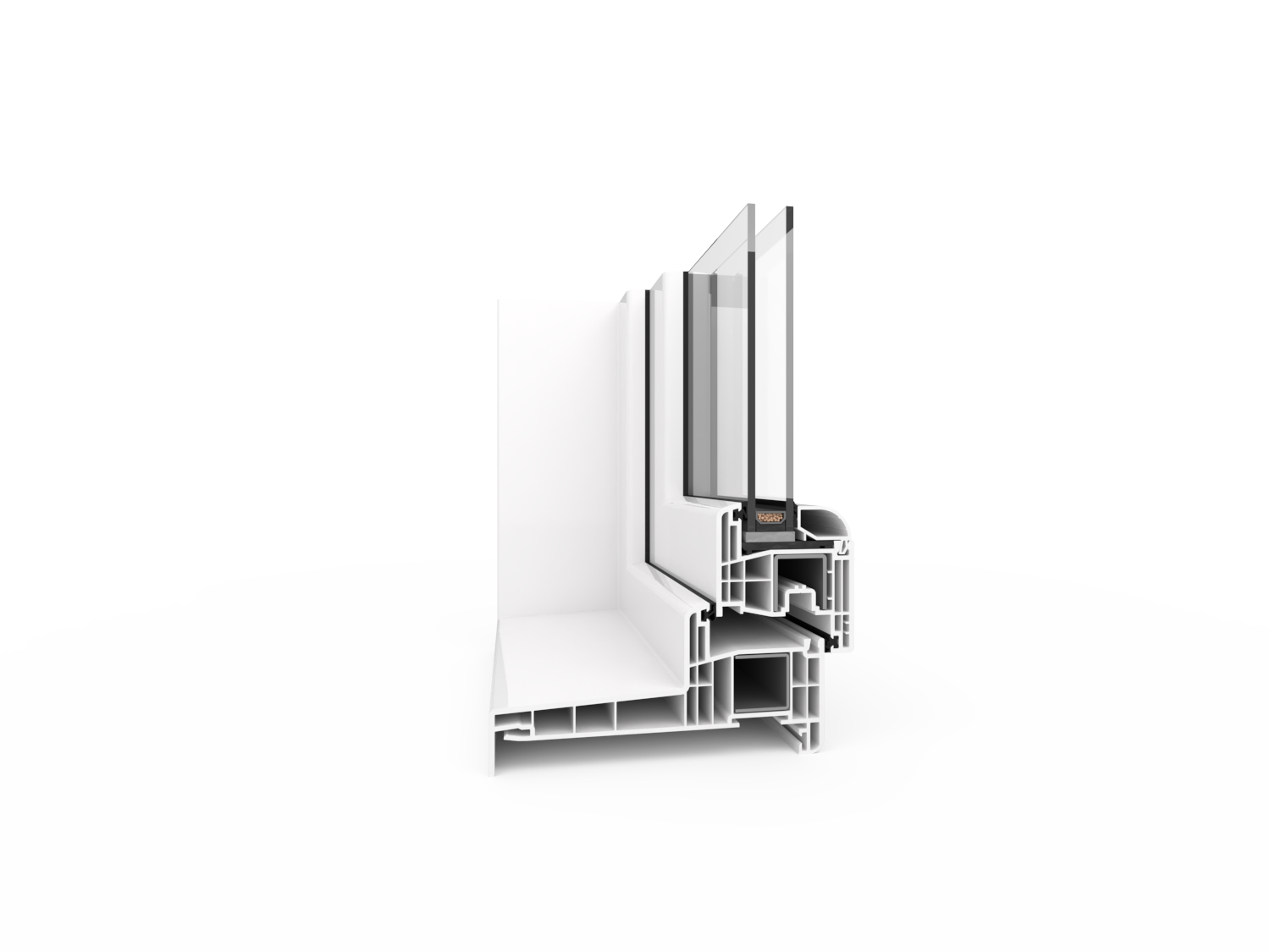

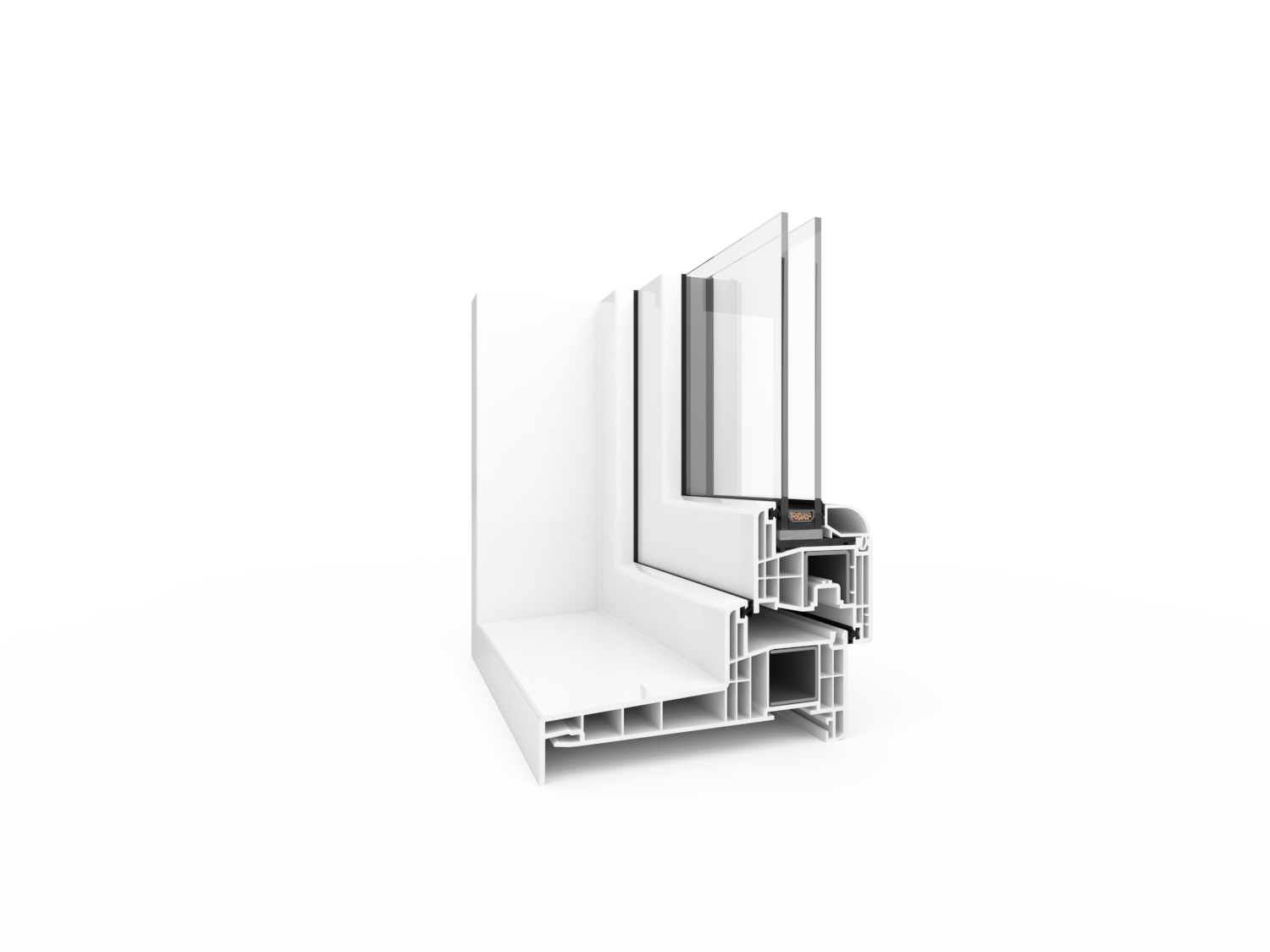

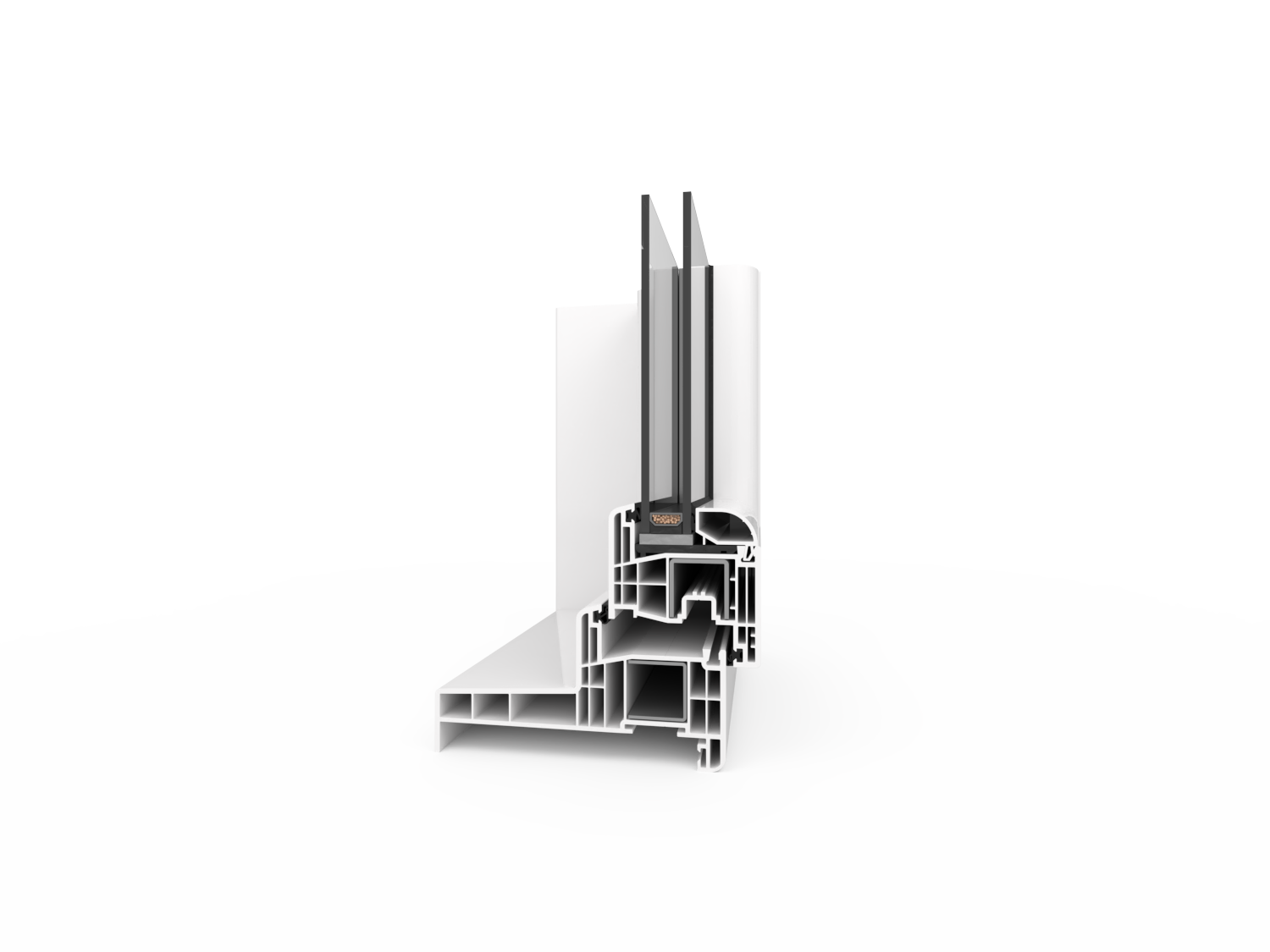

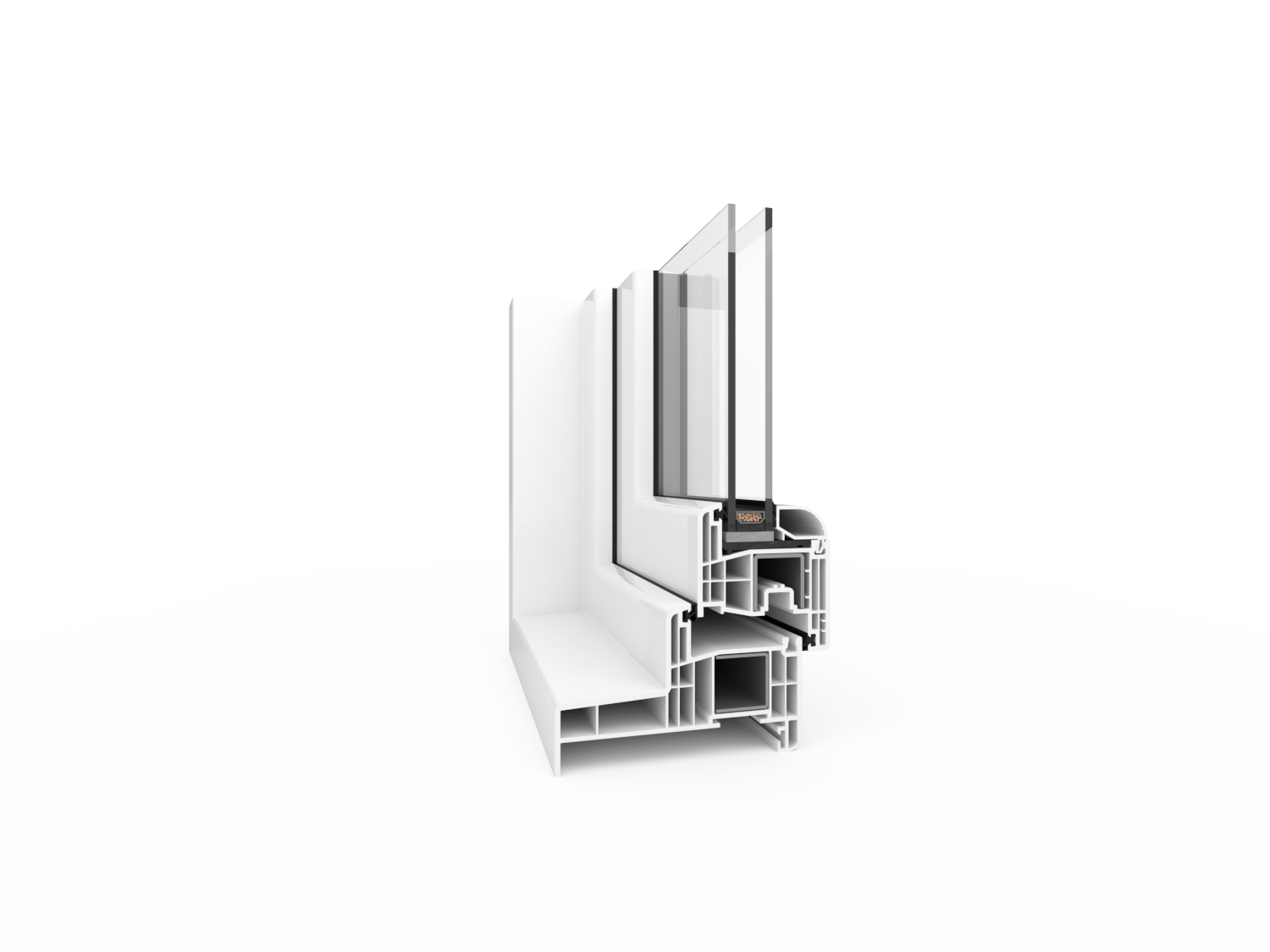

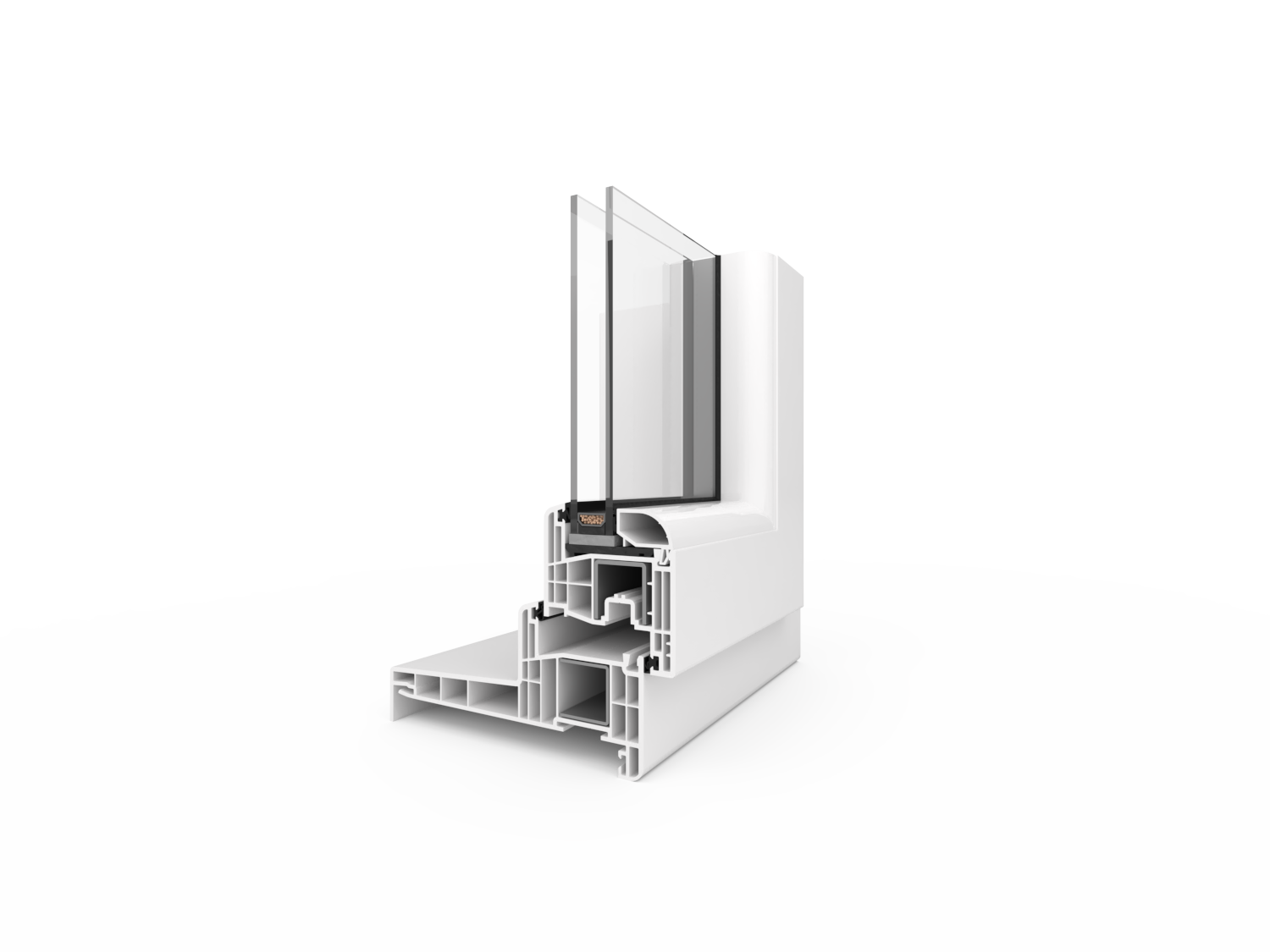

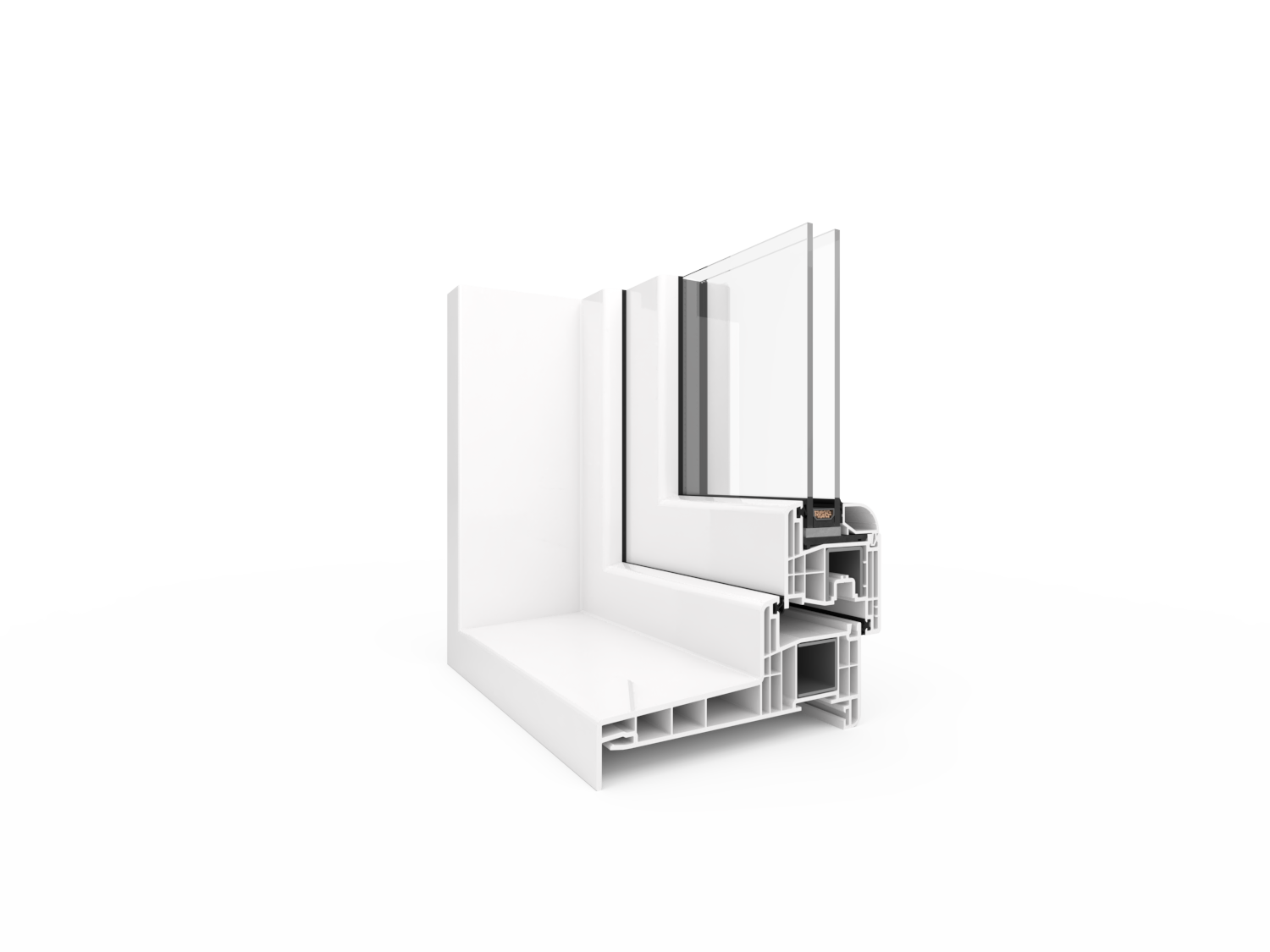

S8000 Monoblock 149 mm
Specification
- profile with a construction depth of 149 mm
- five anti-burglar latchesper sash as standard
- maximum window height: 2375 mm
- maximal glazing area (one sash): up to 2,45 m²
- glazing with units up to 48 mm

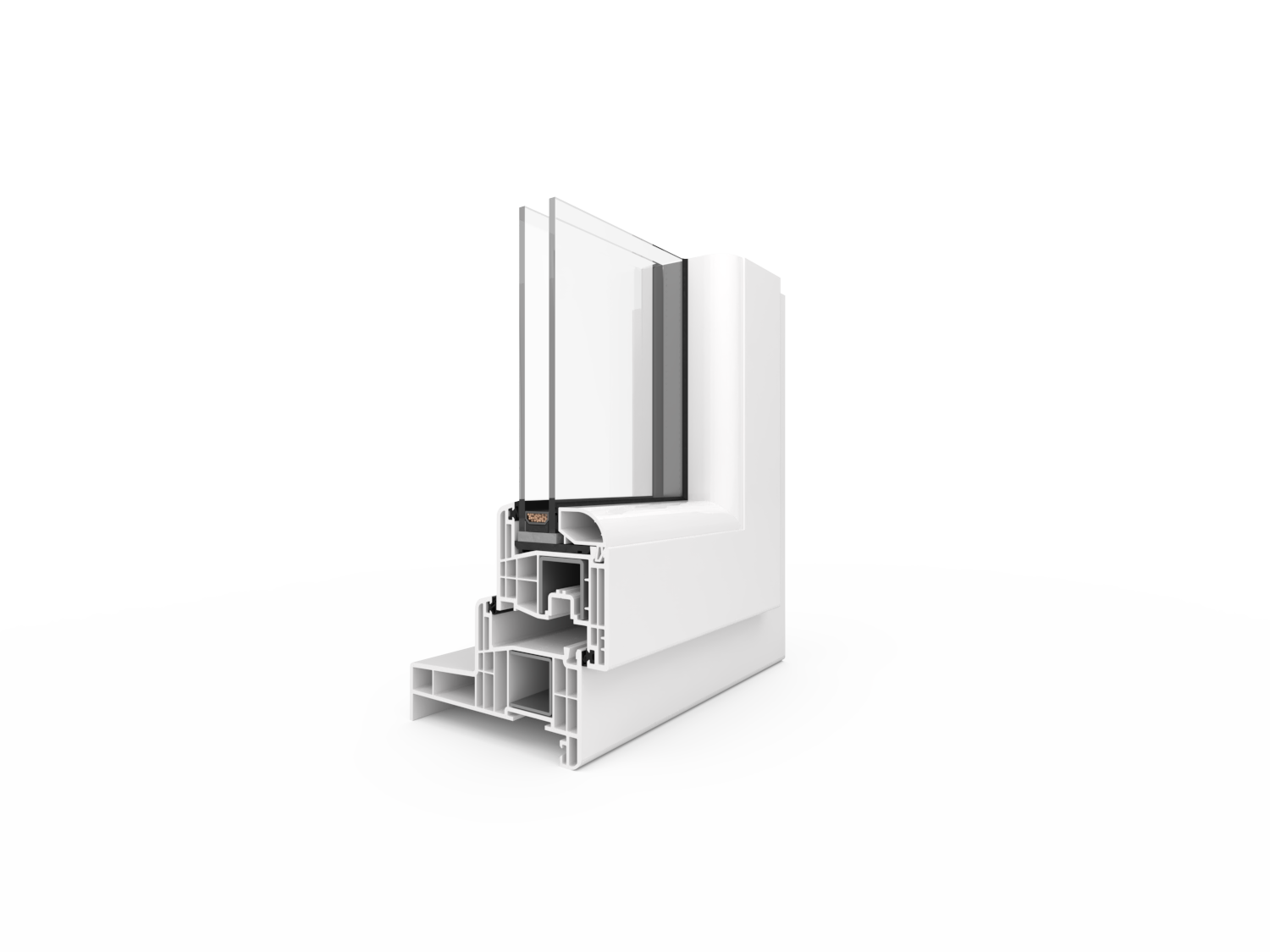

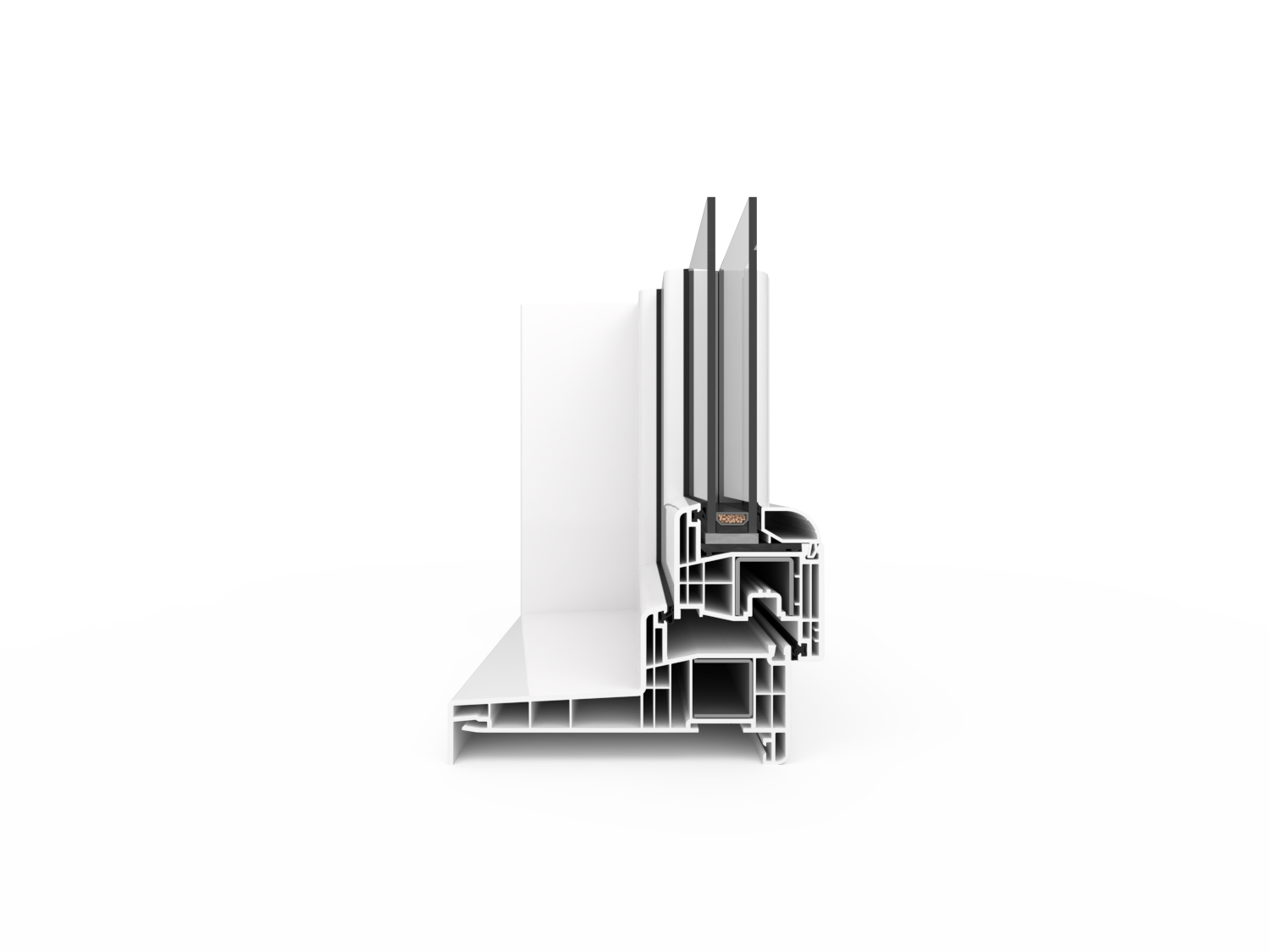

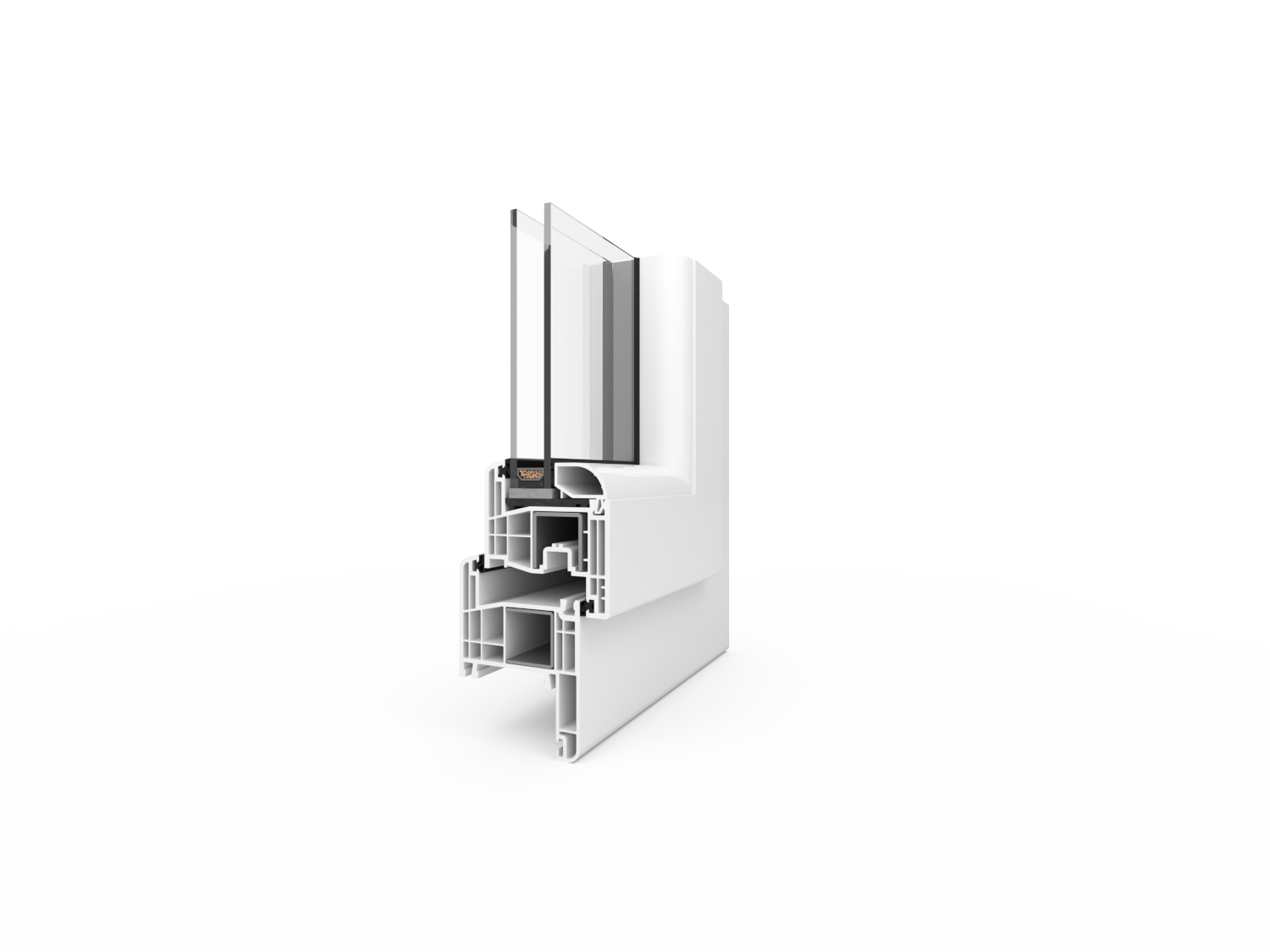

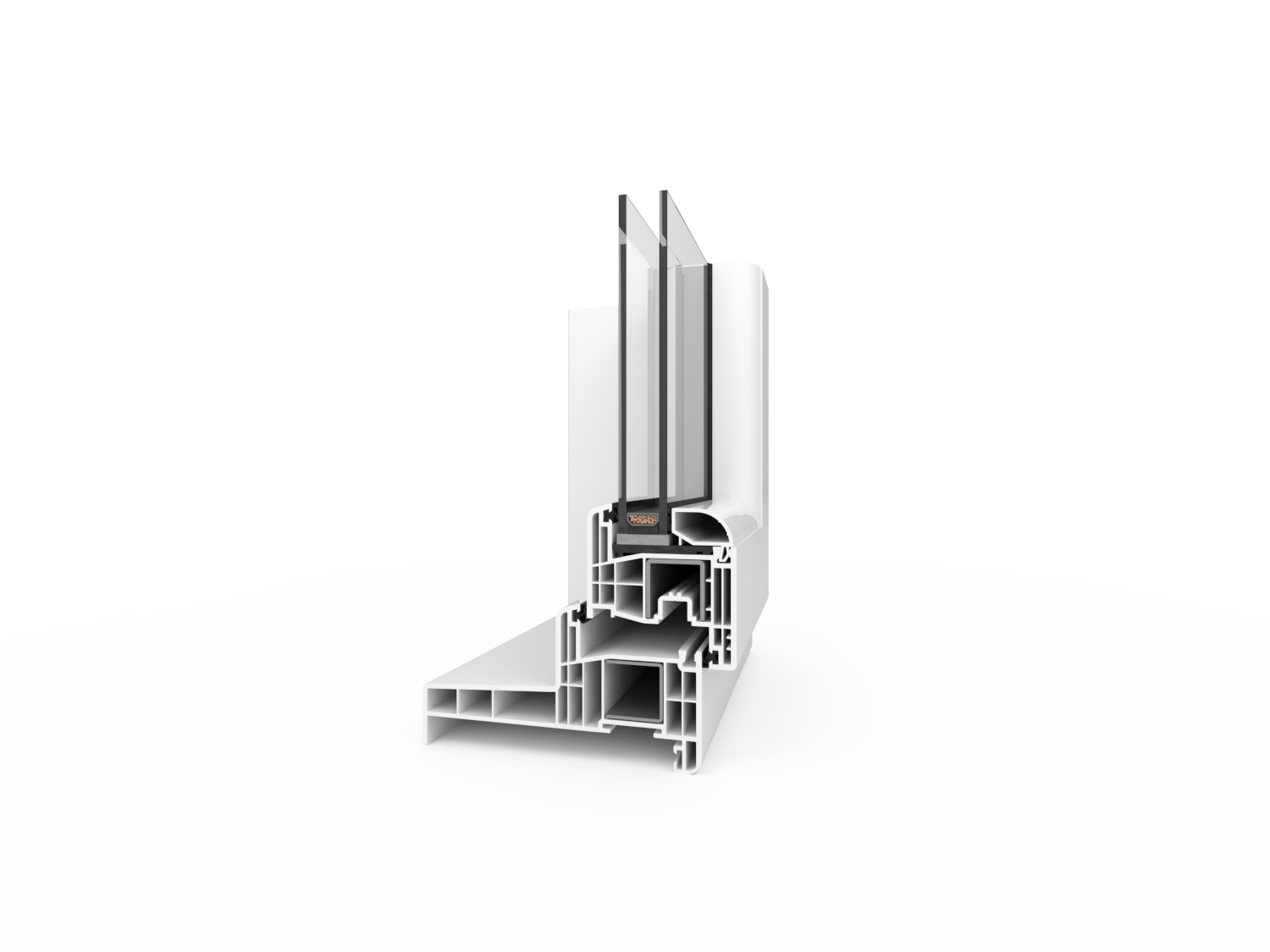

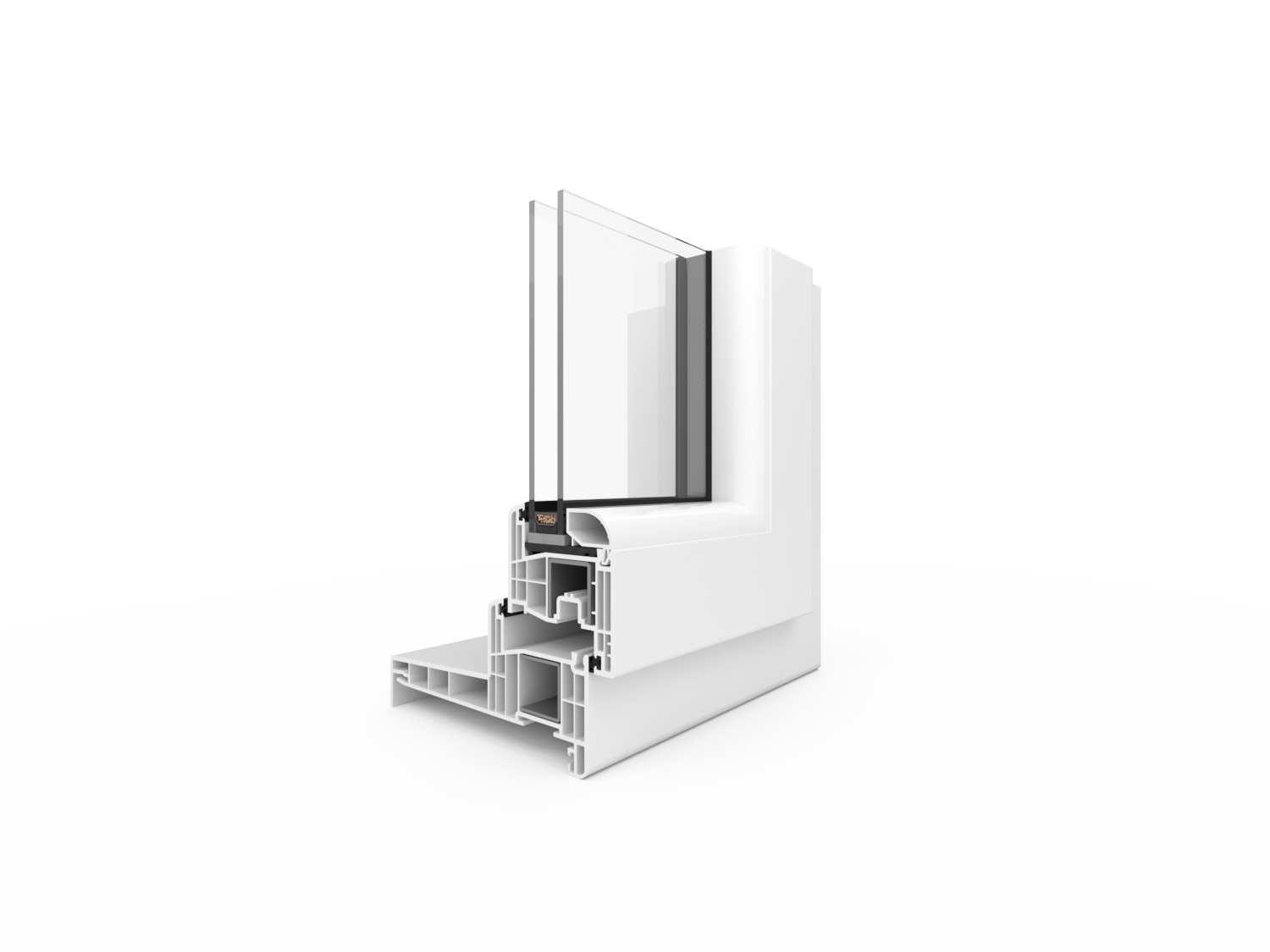

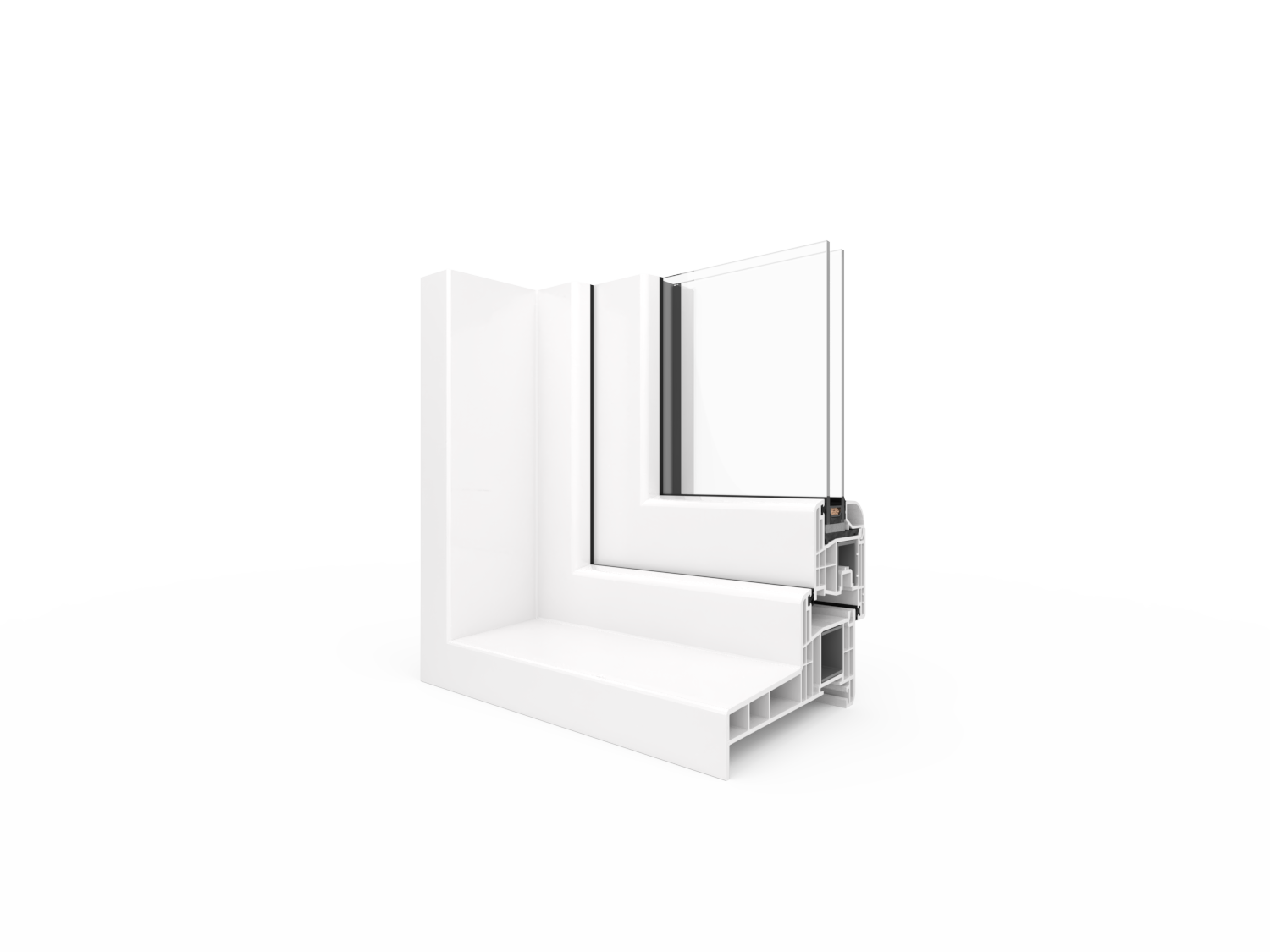

S8000 Monoblock 169 mm
Specification
- profile with a construction depth of 169 mm
- five anti-burglar latchesper sash as standard
- maximum window height: 2375 mm
- maximal glazing area (one sash): up to 2,45 m²
- glazing with units up to 48 mm
* The above value of Uw is given for a reference window with dimensions of 1230 x 1480 mm.
